Lightweight High Definition Indoor LED Advertising Display Screen for Stage Rental LED Video Wall
Technical Parameter: BIR-I-2BIR-I-3BIR-I-4BIR-I-6Pixel Pitch2.97 mm3.91 mm4.81 mm6.25 mmPixel ConfigurationSMD 2121SMD 2121SMD 2121SMD 3528Pixel Density112,896 pixels/m²65,536 pixels/m²43,264 pixels/m²25,600 pixels/m²Module Dimensions (W*H)(mm)250*250/250*500250*......
Send Inquiry
Product Description
Technical Parameter:
| BIR-I-2 | BIR-I-3 | BIR-I-4 | BIR-I-6 | |
| Pixel Pitch | 2.97 mm | 3.91 mm | 4.81 mm | 6.25 mm |
| Pixel Configuration | SMD 2121 | SMD 2121 | SMD 2121 | SMD 3528 |
| Pixel Density | 112,896 pixels/m² | 65,536 pixels/m² | 43,264 pixels/m² | 25,600 pixels/m² |
| Module Dimensions (W*H)(mm) | 250*250/250*500 | 250*250/250*500 | 250*250/250*500 | 250*250/250*500 |
| Physical Resolution of Module (W*H) | 84*84/84*168 | 64*64/64*128 | 52*52/52*104 | 40*40/40*80 |

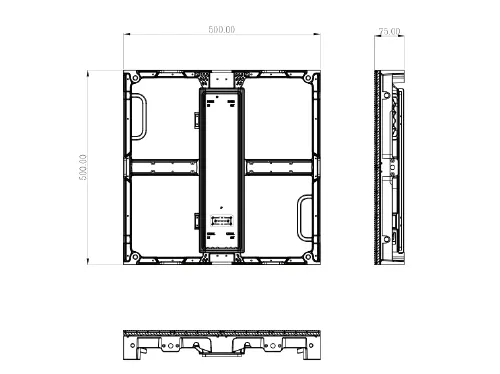

| Cabinet Dimension (mm) | 500*500*80/500*1000*80 | 500*500*80/500*1000*80 | 500*500*80/500*1000*80 | 500*500*80/500*1000*80 |
| Cabinet Resolution (W*H) | 168*168/168*336 | 128*128/128*256 | 104*104/104*208 | 80*80/80*160 |
| Cabinet Weight | 7/13 kg/panel | 7/13 kg/panel | 7/13 kg/panel | 7/13 kg/panel |
| Cabinet Material | aluminum | aluminum | aluminum | aluminum |
| Ingress Protection | IP40/IP21 | IP40/IP21 | IP40/IP21 | IP40/IP21 |
| Brightness | 900-1,200 nits | 900-1,200 nits | 900-1,200 nits | 900-1,200 nits |
| Horizontal Viewing Angle | 160° | 160° | 160° | 160° |
| Vertical Viewing Angle | 140° | 140° | 140° | 140° |
| Refresh Rate | >1,920 Hz | >1,920 Hz | >1,920 Hz | >1,920 Hz |
| Servicing | Front/ Rear | Front/ Rear | Front/ Rear | Front/ Rear |
Description:
Nearly every business needs to have a sign, something to draw customers' eyes. Led display does have this function.
Feature:

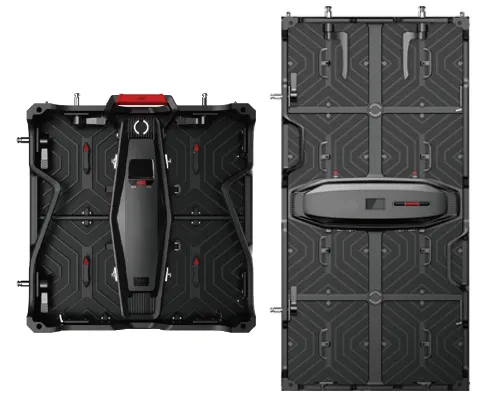

1.Light weight: it can be loaded by one person, quick assembling, quick maintain, reduce. carrying, save costs.
2.Thin cabinet: the thickness is only 80mm, the space of the screen is small , and the entire screen will be more beautiful.
3.Flat screen: smooth surface error is under 0.2cm, it can remove the mosaic phenomenon effectively. The effect of the display will be more clear and exquisite.

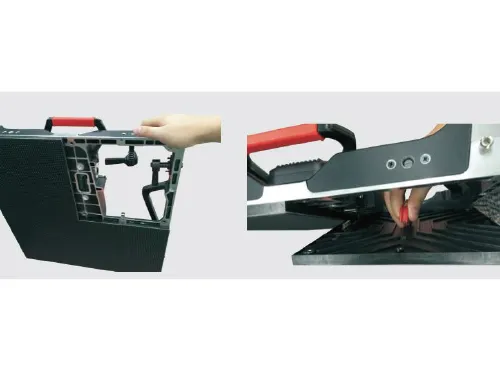

4. Quick dismounting: adopt fast locking structure connected, firm, quick, beautiful. Tools free installation. Cable-less between modules.

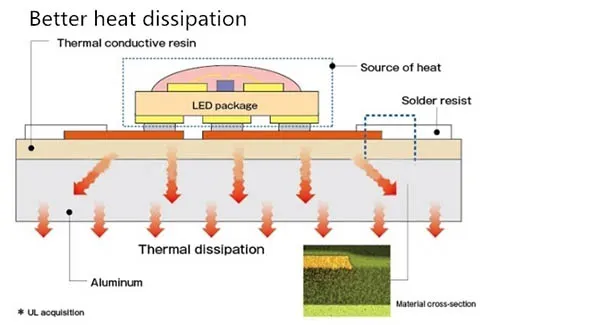

5. Low release heat: low noise, low consumption, low cost, no fan design but excellent thermal design and excellent thermal dispersion.

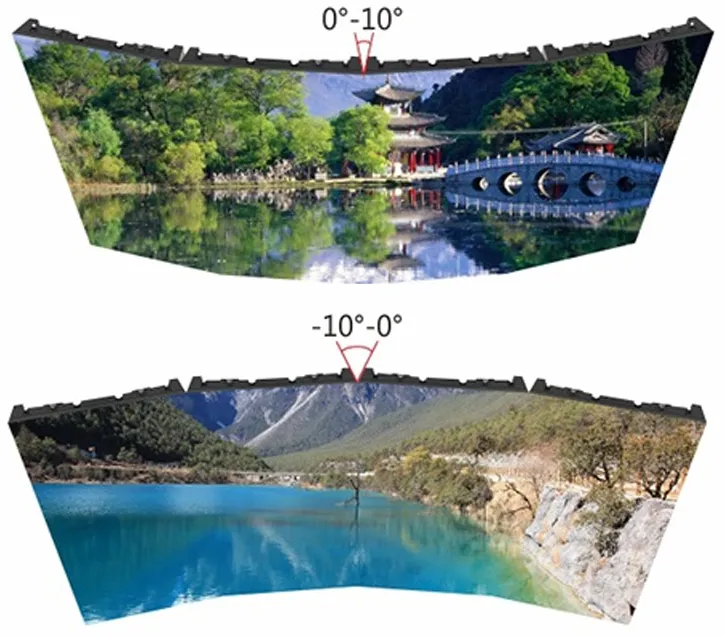

6.Concave and convex setup support: client can asselbly any shape of the led wall display to make different show effect compare with common led display panel.

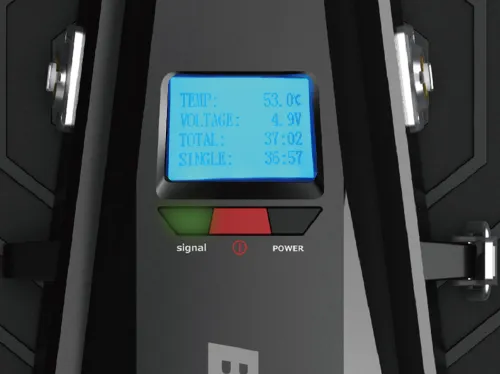

7.LCD monitoring display indicates the status.
FAQ:
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass order needs about 15-20 days.
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping are also optional.
