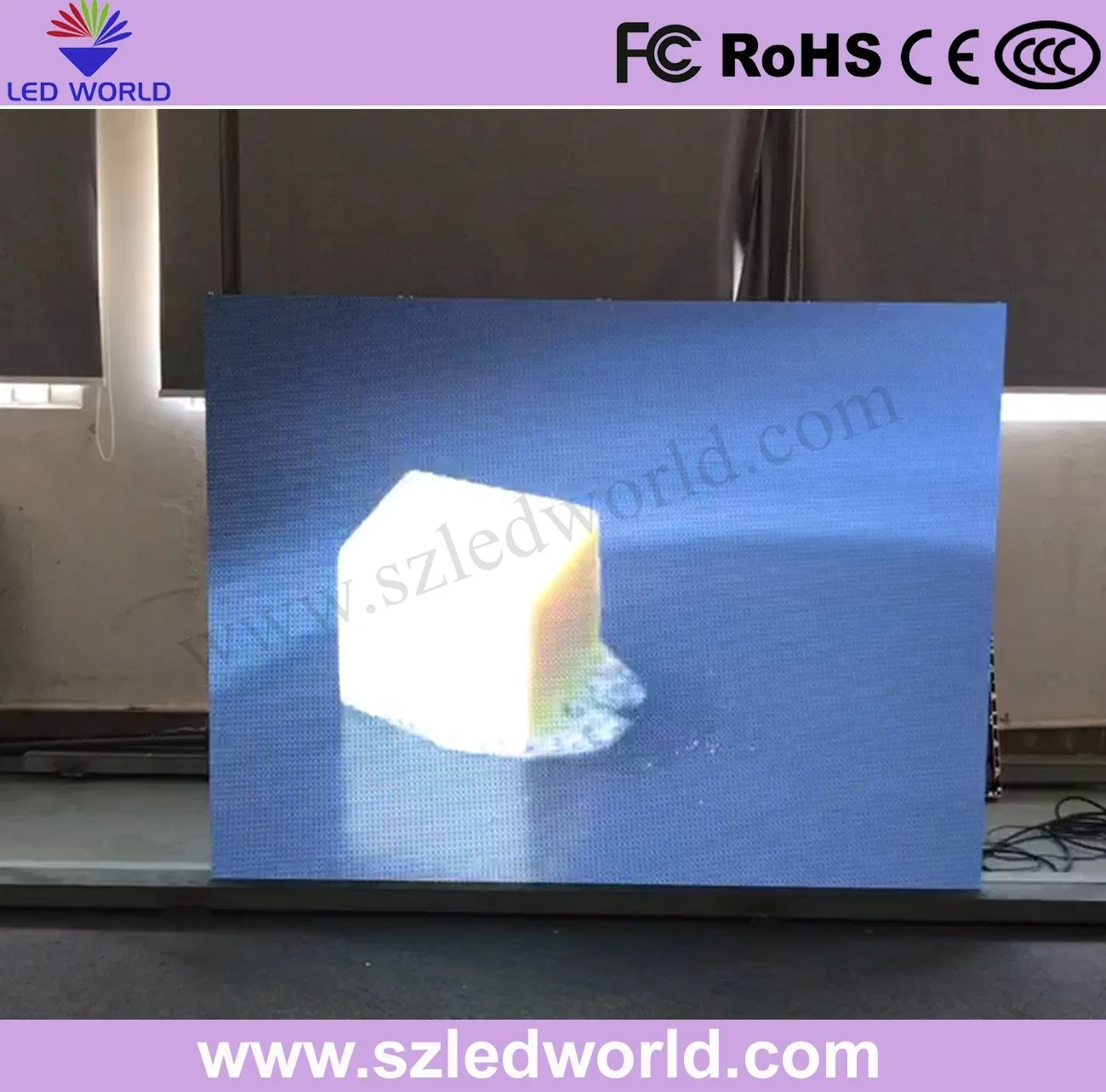

P2 P2.5 P5 High Definition Rental Indoor LED Screen Display Panel with 480X480 mm Die-Caste Cabinet for Exhibition
P2, P2.5, P5 high definition rental indoor led screen display panel with 480x480 mm die-caste cabinet for exhibitionFeature: Pixel Pitch PH2mm PH2.0mm PH5mm Cabinet ; Ultra Light & Slim,Lowest weight in its class, only 11.5 kg per panel (500 mm x 1000 mm x 90 mm; High definition,43402 Pixels......
Send Inquiry
Product Description

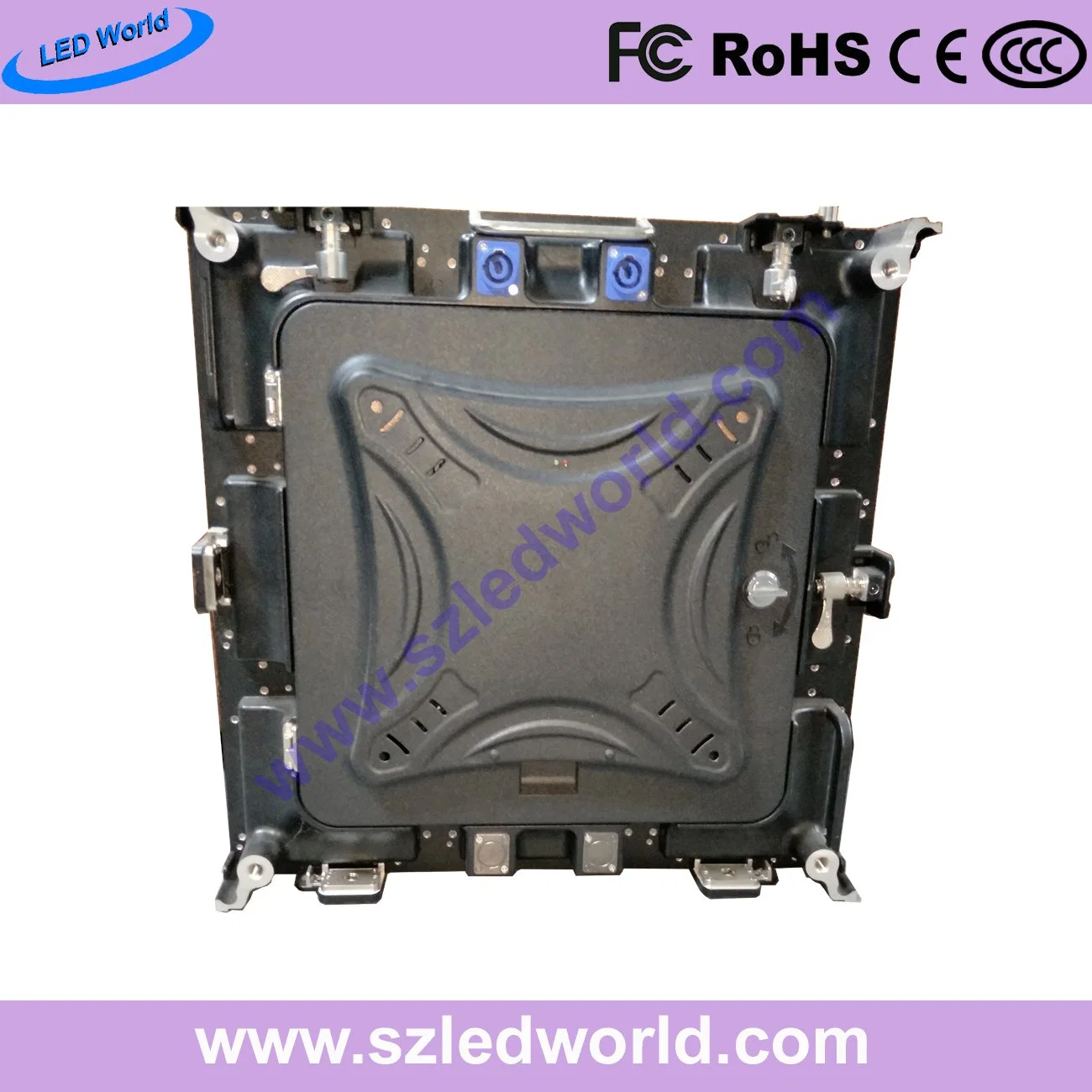

P2, P2.5, P5 high definition rental indoor led screen display panel with 480x480 mm die-caste cabinet for exhibition
Feature:
○ Pixel Pitch PH2mm PH2.0mm PH5mm Cabinet ;
○ Ultra Light & Slim,Lowest weight in its class, only 11.5 kg per panel (500 mm x 1000 mm x 90 mm;
○ High definition,43402 Pixels/sqm,can show extremely clear and vivid video,images and texts,looking very high end;
○ High Reliance anti-static 6Kv;
○ HD module with Micro pixel pitch, unlimited splitting support 2K,4K and super HD video resource high grey scale,even
under 50-300cd/m2 brightness;
○ Seamless Splicing panel with seamless splicing technology, uniform video without partition, black line and information
omission;
○ 4:3 design. Cabinet's 4:3 resolution is specialized for command center. Perfect replacement for LCD display;
Parameter:
Our company:
Shenzhen LED World CO.,LTD was founded in 2009, focusing on the LED technology research and LED full color display production ,sales and engineering services for the integration of private high-tech enterprises. The company has professional production equipment and excellent technology,industry veteran,high-quality,high standards of moden management team ,a high level of professional and technical developer,has many years of operating experience and well-trained, a significant number of skilled workers.Company strict implementation of 7 S management standard professional management standards , has passed 3C,CE,FCC,RoHS,ISO9001-2009 quality system certification,reliable quality ,advanced technology,automation of form a complete set of products and continuous development of our roots . products are exported to USA, Mexico, Greece, Spain, Italy, UK, Uganda, Nigeria, Russia, India, Turkey, Thailand ,Vietnam, Brazil, Australia etc more than 20 countries and regions, and gained good reputation form the clients.

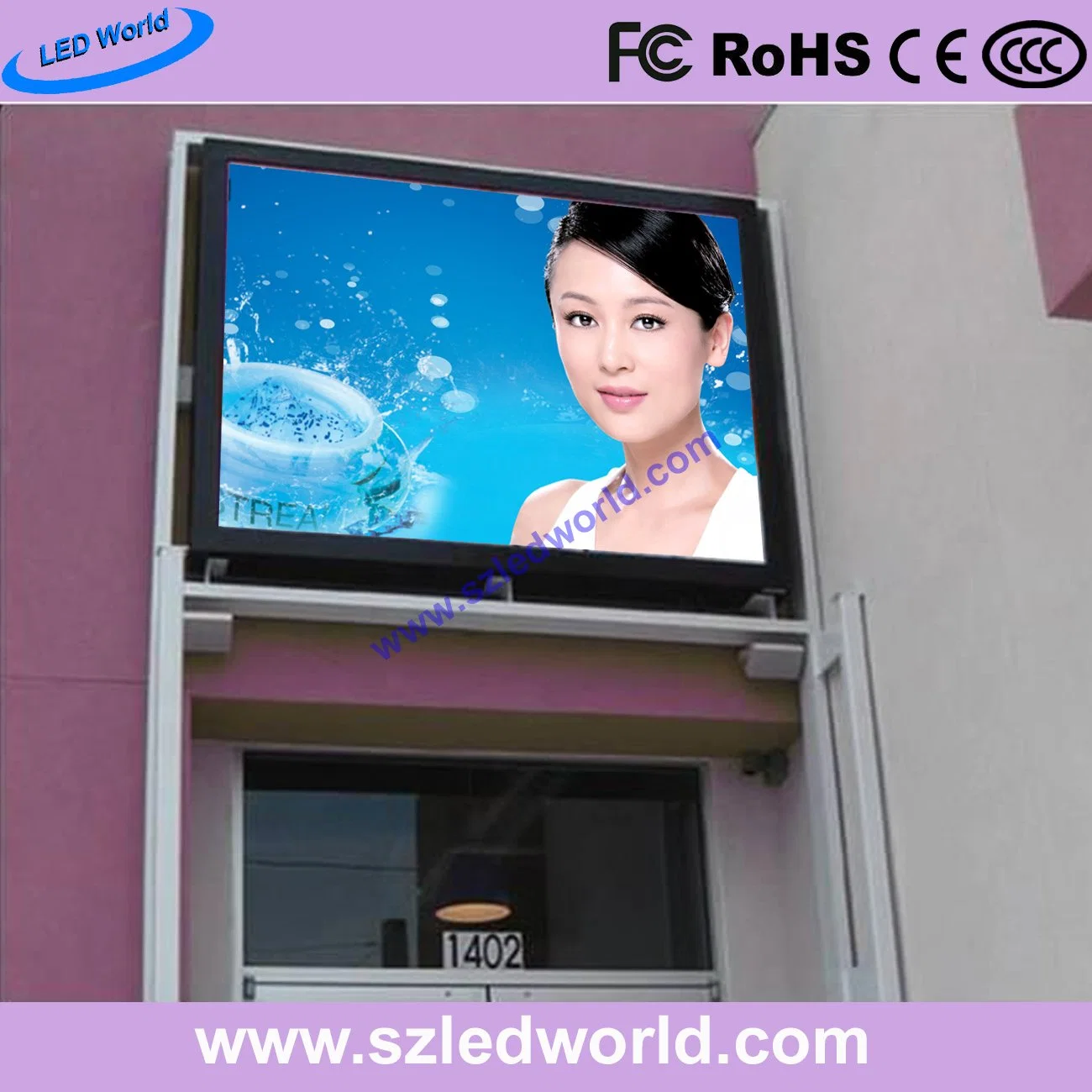

Project case:
Our Services:
Pre-sales support:
1. We offered technical advice to you before buying our products.
2. Help you to choose suitable products within budget with most economy benefit.
3. Design the framework structure to install our led products with technical drawing.
4. We offered software customization for our your specific usage.
After- sales service:
1. We promise you more than just two years warranty service!
2.We provide free maintenance services including remote configuration, technical consultation, and trouble shooting for you.
3. We promise a life time follow-up service for all the equipment supply by our company. These include continuously improve of system functions and upgrade of system software.
4. We offered training to our customer who includes operating and maintenance of our products.

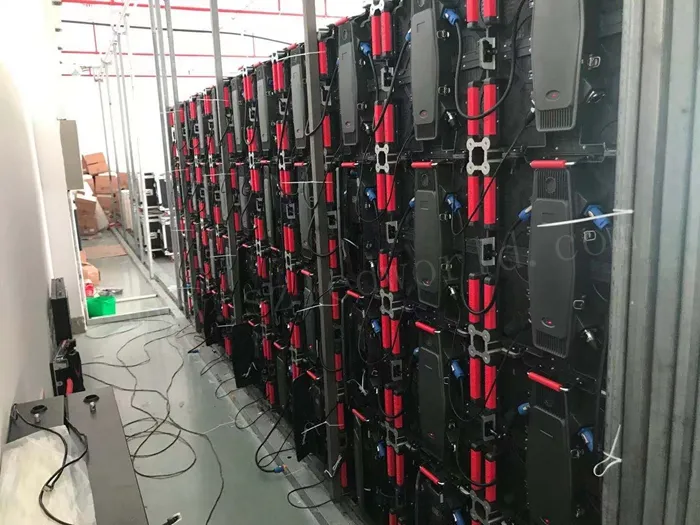

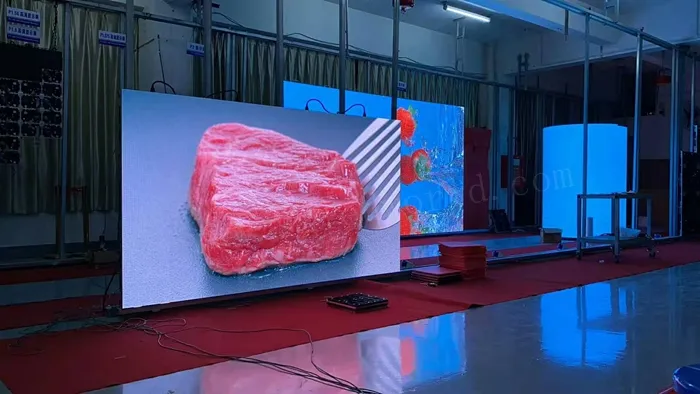

Workshop:
Package:

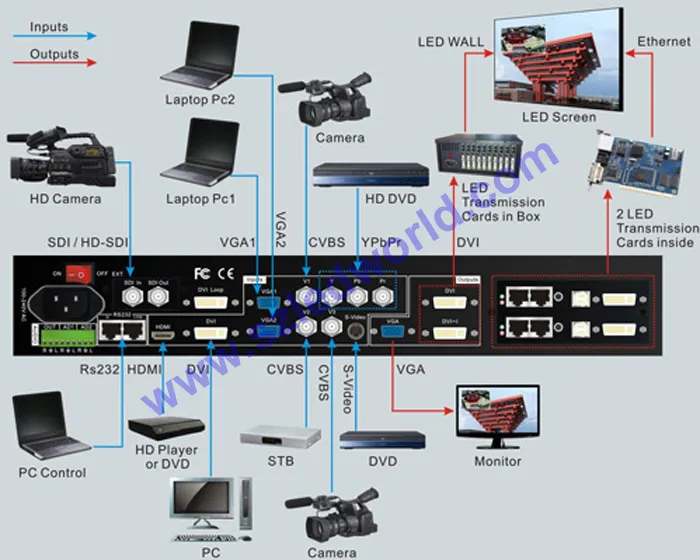

Signal diagram:

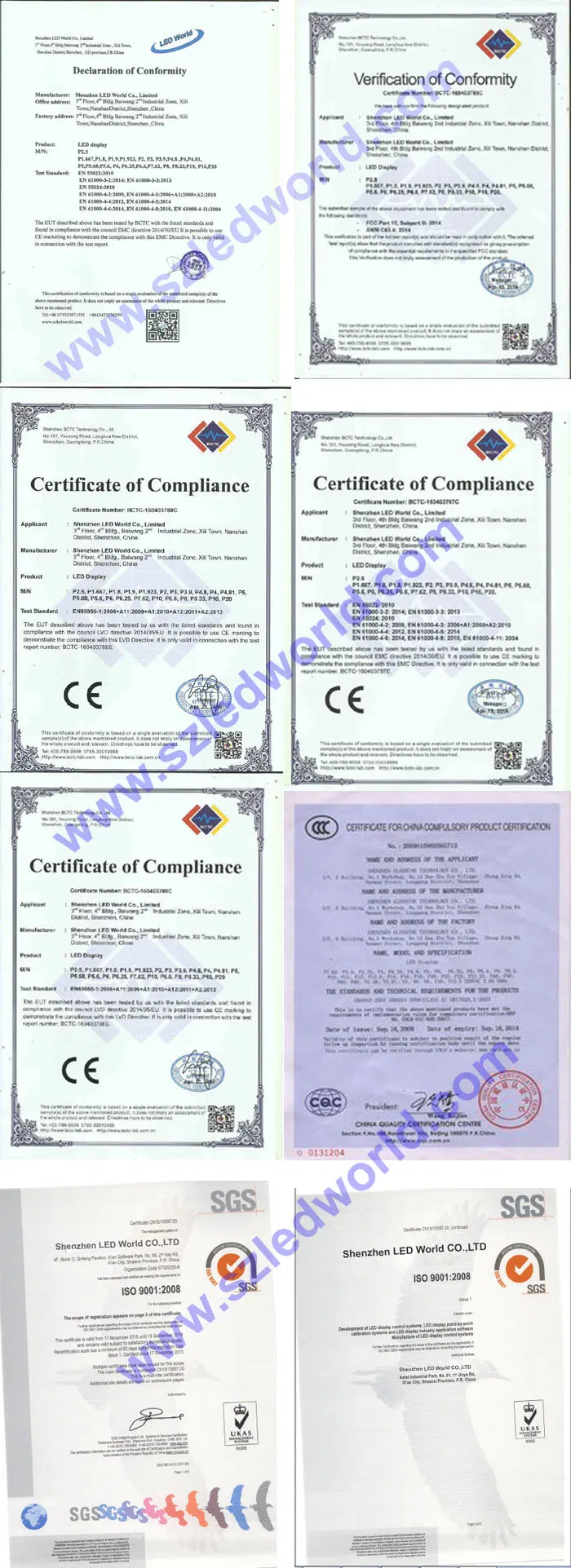

Certification:
Trade term:
Warranty time: 2years;
Delivery time: 10-25 working days;
Payment: T,T / West Union;
Transportation: By sea or air or Express;

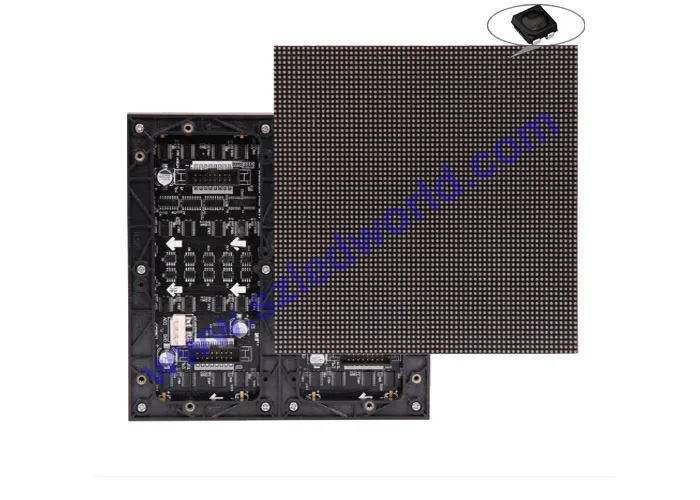

LED module:
Feature:
○ Pixel Pitch PH2mm PH2.0mm PH5mm Cabinet ;
○ Ultra Light & Slim,Lowest weight in its class, only 11.5 kg per panel (500 mm x 1000 mm x 90 mm;
○ High definition,43402 Pixels/sqm,can show extremely clear and vivid video,images and texts,looking very high end;
○ High Reliance anti-static 6Kv;
○ HD module with Micro pixel pitch, unlimited splitting support 2K,4K and super HD video resource high grey scale,even
under 50-300cd/m2 brightness;
○ Seamless Splicing panel with seamless splicing technology, uniform video without partition, black line and information
omission;
○ 4:3 design. Cabinet's 4:3 resolution is specialized for command center. Perfect replacement for LCD display;
Parameter:
| Pixel pitch | 2.0mm | 2.5mm | 5.0mm |
| Pixel Configuration | 1R1G1B | 1R1G1B | 1R1G1B |
| LED component | SMD1010 | SMD2121 | SMD3528 |
| Size of module | 160mm x 160mm | 160mm x 160mm | 160mm x 160mm |
| Resolution of module | 80x80 | 64x64 | 32x32 |
| Size of cabinet | 480mm x 480mm x 78mm | 480mm x 480mm x 78mm | 480mm x 480mm x 78mm |
| Resolution of cabinet | 240x240 | 192x192 | 96x96 |
| Material of Cabinet | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum |
| Weight of Cabinet | about 7KG/cabinet | about 7KG/cabinet | about 7KG/cabinet |
| Brightness | >1000cd/sq.m | >1200cd/sq.m | >1300cd/sq.m |
| Density | 250000dots/sq.m | 160000dots/sq.m | 40000dots/sq.m |
| Best viewing angle | 140 /140 | 140 /140 | 120 /120 |
| Best viewing distance | 1.5-20M | 2-30M | 5-15M |
| Maximum power consumption | 600W/sq.m | 600W/sq.m | 600W/sq.m |
| Average power consumption | 300W/sq.m | 300W/sq.m | 300W/sq.m |
| Driving method | 1/16 scan | 1/32 scan | 1/16 scan or 1/8 scan |
| Control method | Synchronization | Synchronization | Synchronization |
| Gray scale | 65536 | 65536 | 4096 |
| Colors | 256*256*256 | 256*256*256 | 256*256*256 |
| Working voltage | AC220V/110V±10% | ||
| Working temperature | -20ºC~+50ºC±10% | ||
| Working humidity | 10% ~ 90% | ||
| MTBF | 10,000 hours | ||
| Frame frequence | 50/60Hz | ||
| Refresh frequence | >3000Hz | ||
| IP grade | IP31 | ||
| Life Span | 100,000 hours | ||
| Data transafer method | RJ45 | ||
| Accepting signal with video processor | PAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc. | ||
| Systems operating platform | WINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development | ||
| Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World. | |||
Our company:
Shenzhen LED World CO.,LTD was founded in 2009, focusing on the LED technology research and LED full color display production ,sales and engineering services for the integration of private high-tech enterprises. The company has professional production equipment and excellent technology,industry veteran,high-quality,high standards of moden management team ,a high level of professional and technical developer,has many years of operating experience and well-trained, a significant number of skilled workers.Company strict implementation of 7 S management standard professional management standards , has passed 3C,CE,FCC,RoHS,ISO9001-2009 quality system certification,reliable quality ,advanced technology,automation of form a complete set of products and continuous development of our roots . products are exported to USA, Mexico, Greece, Spain, Italy, UK, Uganda, Nigeria, Russia, India, Turkey, Thailand ,Vietnam, Brazil, Australia etc more than 20 countries and regions, and gained good reputation form the clients.

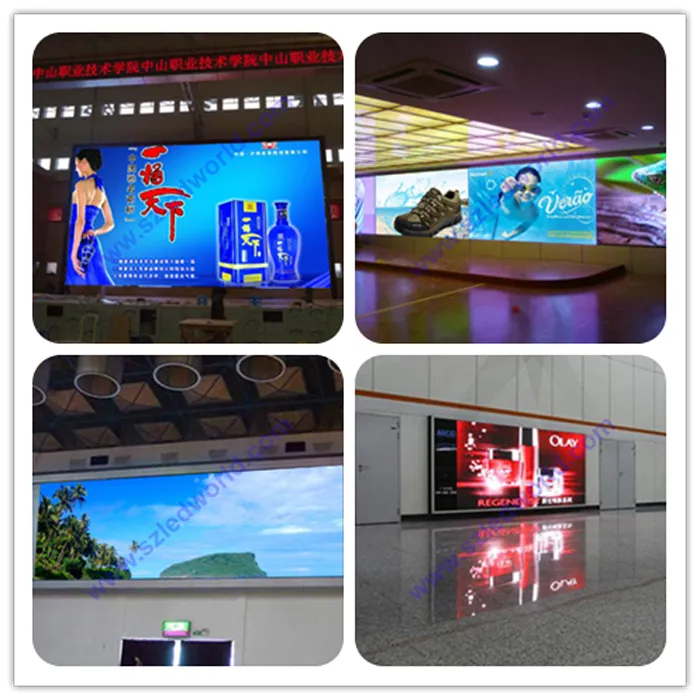

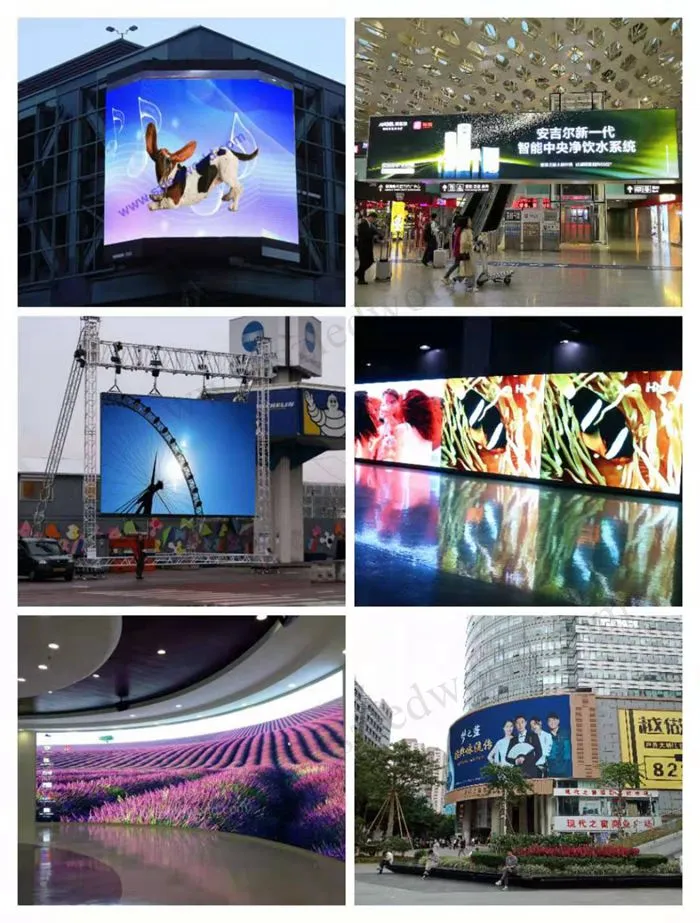

Project case:
Our Services:
Pre-sales support:
1. We offered technical advice to you before buying our products.
2. Help you to choose suitable products within budget with most economy benefit.
3. Design the framework structure to install our led products with technical drawing.
4. We offered software customization for our your specific usage.
After- sales service:
1. We promise you more than just two years warranty service!
2.We provide free maintenance services including remote configuration, technical consultation, and trouble shooting for you.
3. We promise a life time follow-up service for all the equipment supply by our company. These include continuously improve of system functions and upgrade of system software.
4. We offered training to our customer who includes operating and maintenance of our products.

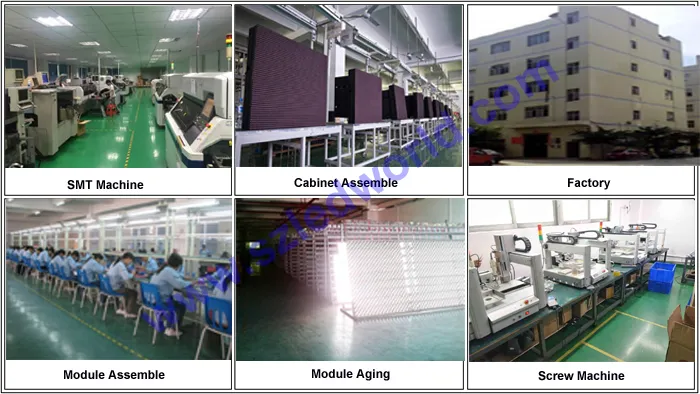

Workshop:
Package:
Signal diagram:
Certification:
Trade term:
Warranty time: 2years;
Delivery time: 10-25 working days;
Payment: T,T / West Union;
Transportation: By sea or air or Express;
LED module:
