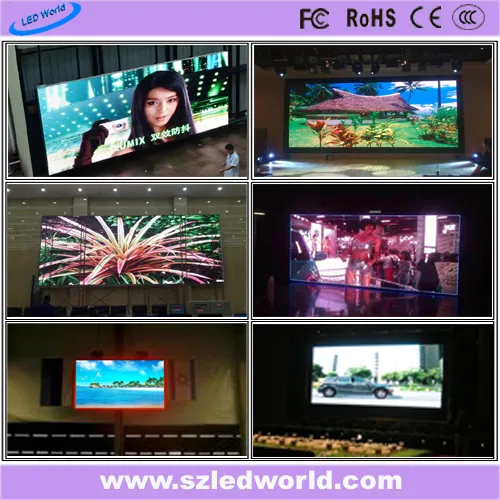

P3 576mm X 576mm Cabinet Indoor Fixed LED Display video Wall for Advertising
P3 576mm X 576mm cabinet indoor fixed led display vedio wall for advertising Slim Fixed LED Display features:1. CE,FCC,RoHS,C-Tick approved 2. High quality, High defination, High refresh 3. Superior uniformity, Good display effect4. 2 years warranty, best after-sales service5. Video, flash, animat......
Send Inquiry
Product Description
P3 576mm X 576mm cabinet indoor fixed led display vedio wall for advertising
Slim Fixed LED Display features:

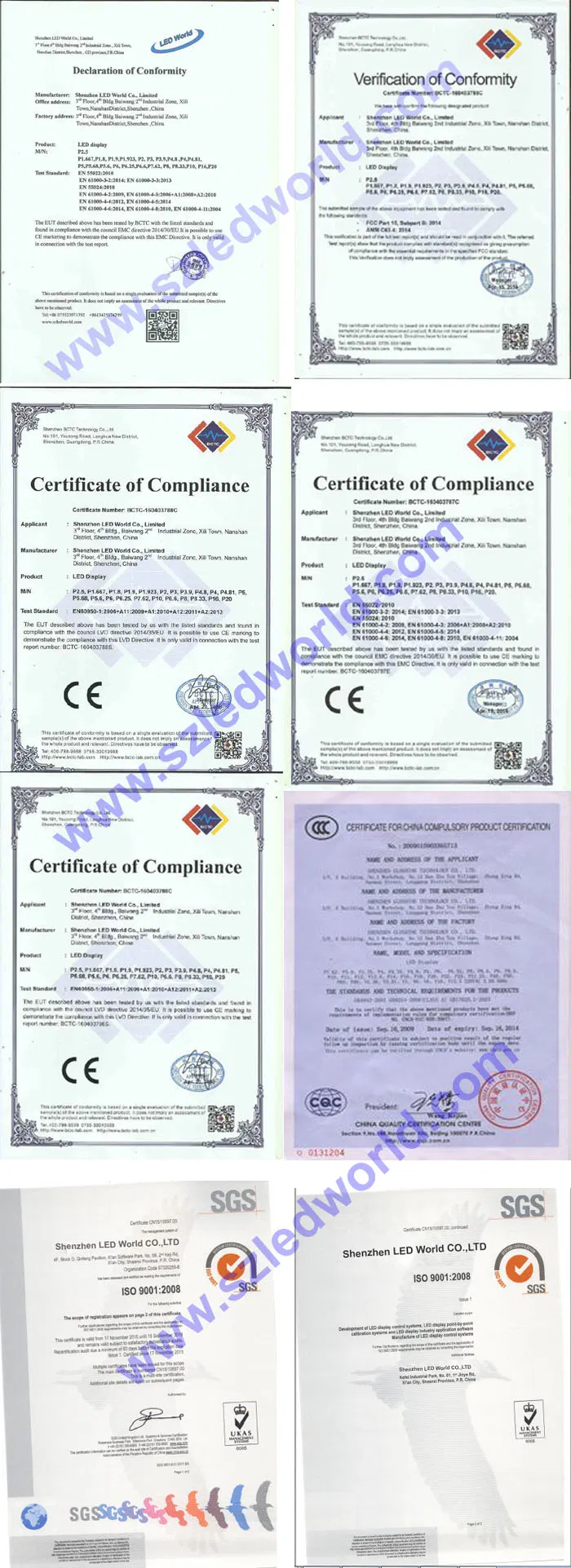

1. CE,FCC,RoHS,C-Tick approved
2. High quality, High defination, High refresh
3. Superior uniformity, Good display effect
4. 2 years warranty, best after-sales service
5. Video, flash, animation, graphic, text available;
6 .Installation structure drawing offered FOC;
7. Factory visiting and inspecting is welcome;
8. OEM service offered;
9. Models available:
Slim Fixed LED Display parameters:

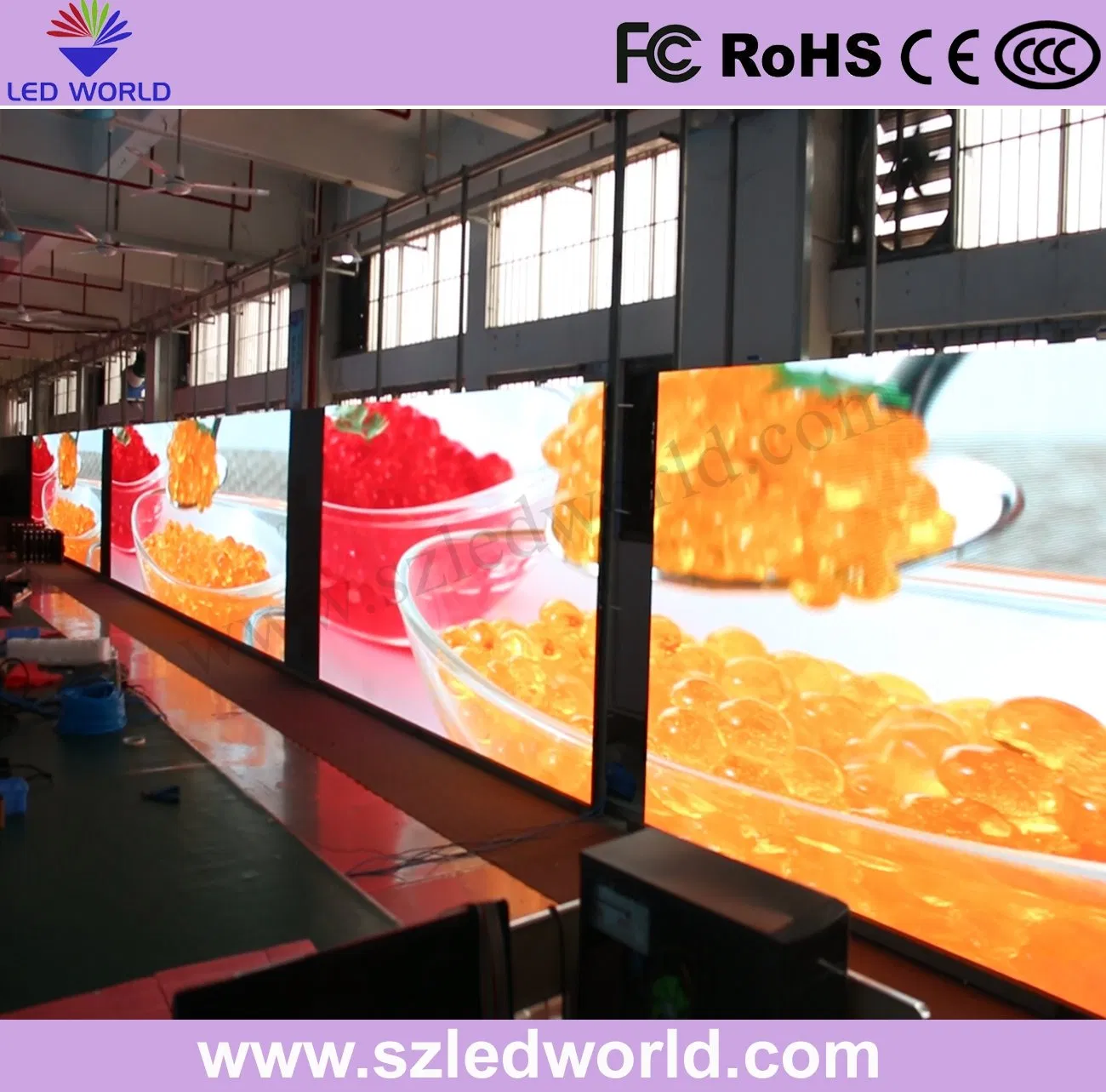

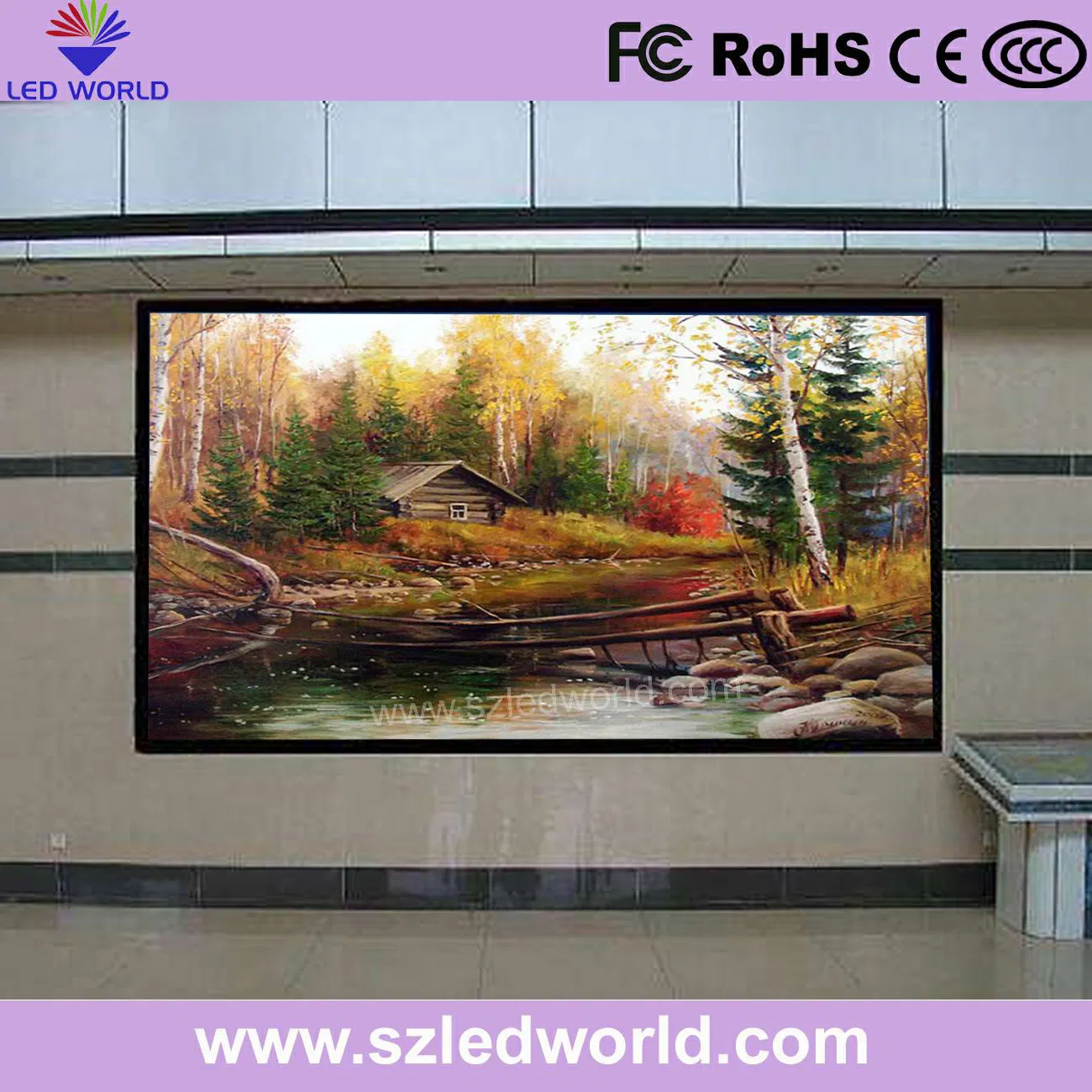

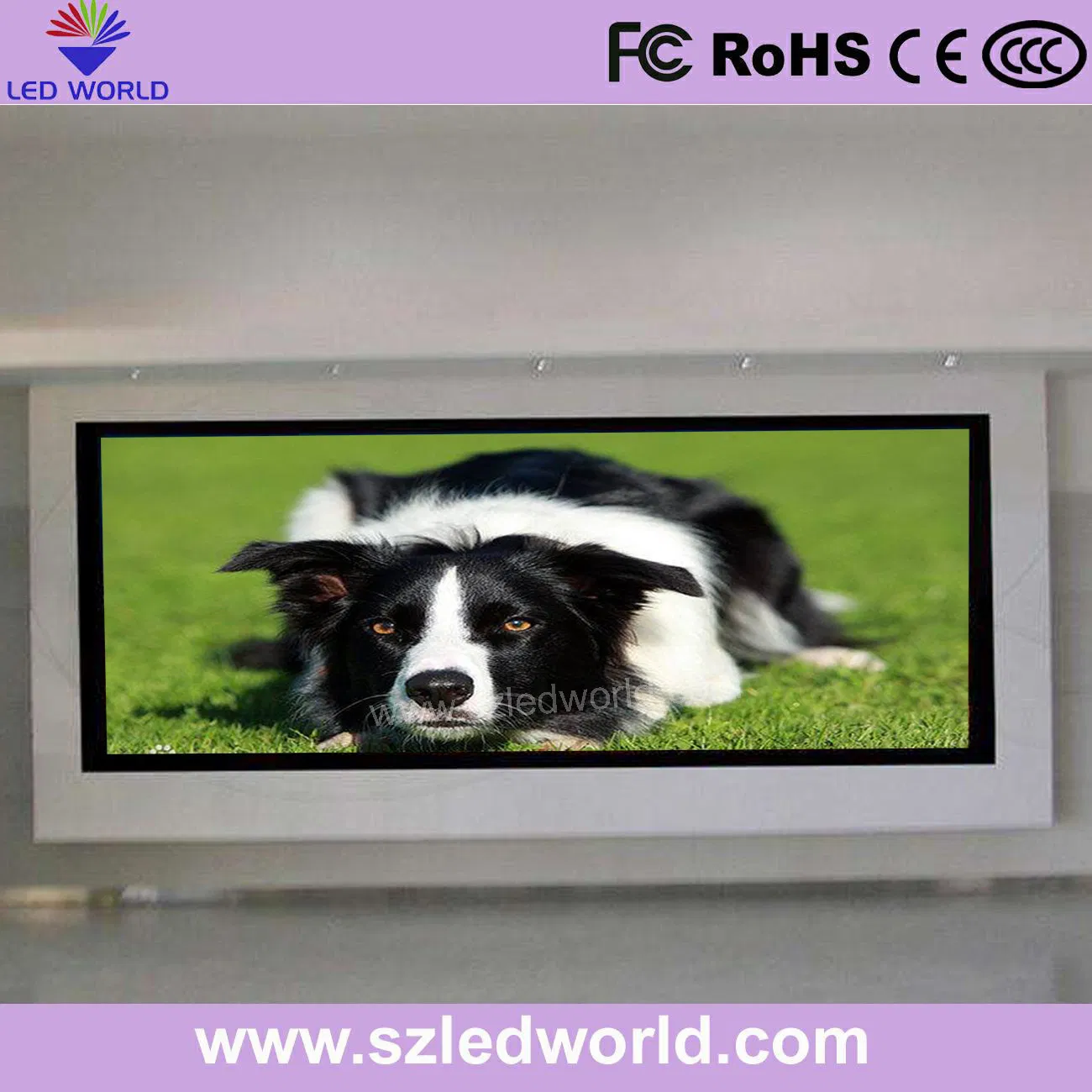

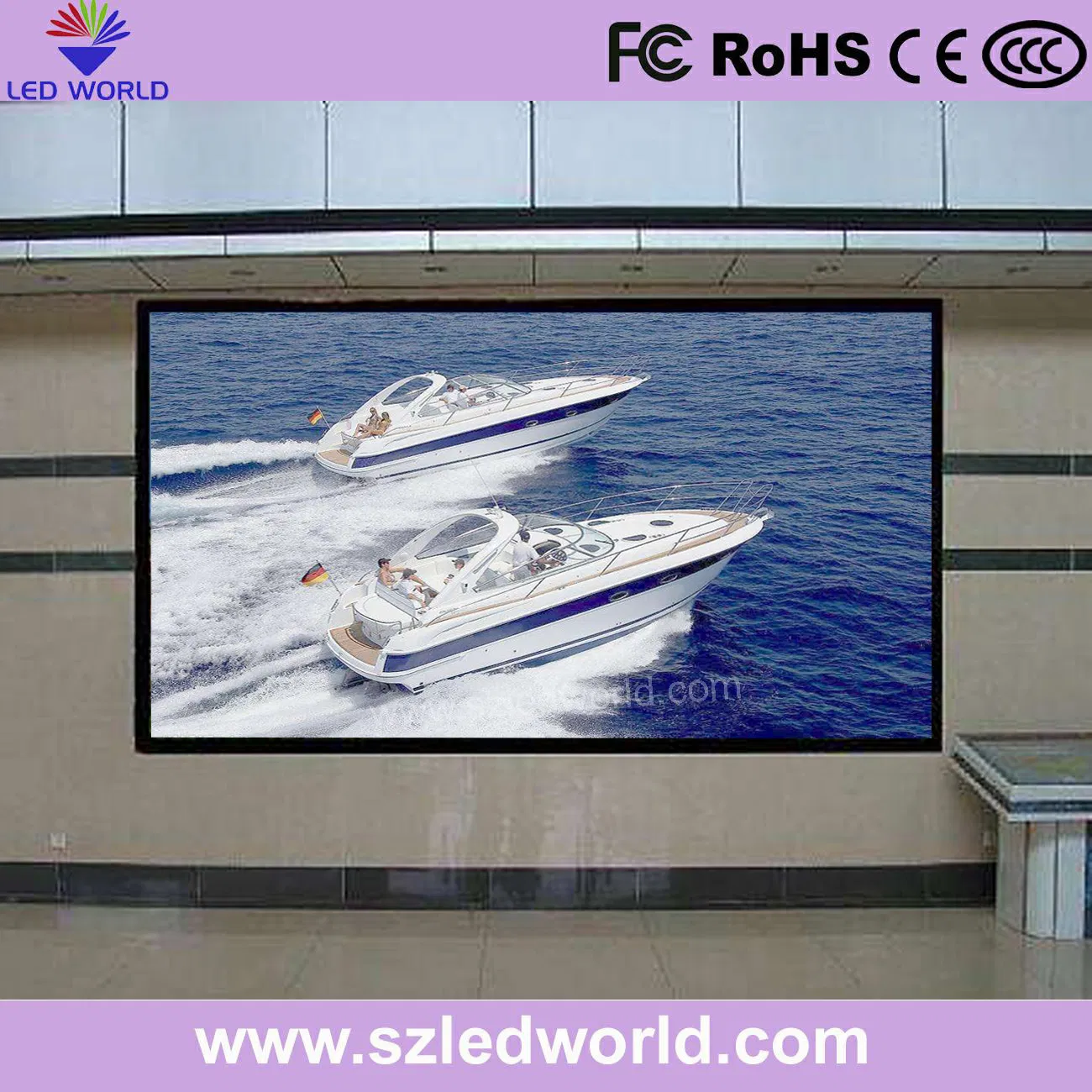

Project Case:
Our Service:
Pre-sales support:
1. We offered technical advice to you before buying our products.
2. Help you to choose suitable products within budget with most economy benefit.
3. Design the framework structure to install our led products with technical drawing.
4. We offered software customization for our your specific usage.
After- sales service:
1. We promise you more than just two years warranty service!
2.We provide free maintenance services including remote configuration, technical consultation, and trouble shooting for you.
3. We promise a life time follow-up service for all the equipment supply by our company. These include continuously improve of system functions and upgrade of system software.
4. We offered training to our customer who includes operating and maintenance of our products.

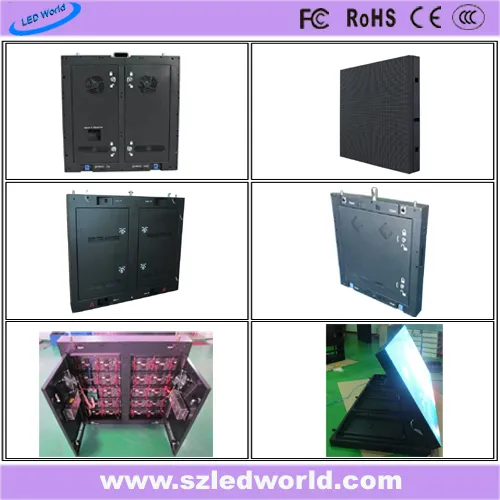

Products details:
Why Choose Us:
1. attractive price! If you have any urgent questions, pls contact me without hesitation;
2. Free training is provided for our customers;
3. 24/7 after-sale service
4. Good heat dissipation capability and high waterproof because of the unique design of vent fan (like shutter).
5. Viewing angle, wavelength, and other optical properties; aging test LED lamps attenuation; an IC testing stand, strict control the quality of the IC ;
Customer Visiting:
Trade Terms:
2 years warranty ,lifelong maintaining. In the Maintenance period, free of all maintenance charges. After Maintenance period,only charge the material costs fees;
Transportation: By sea or air or Express;
Hardware: LED display and video controlling system;
Payment: T,T / West Union;

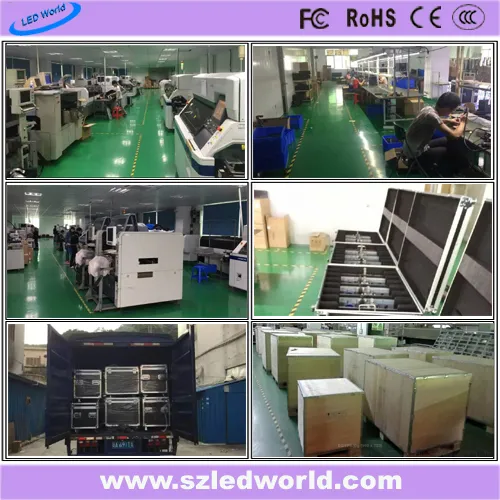

Workshop:
Applications:
Slim Fixed LED Display features:
1. CE,FCC,RoHS,C-Tick approved
2. High quality, High defination, High refresh
3. Superior uniformity, Good display effect
4. 2 years warranty, best after-sales service
5. Video, flash, animation, graphic, text available;
6 .Installation structure drawing offered FOC;
7. Factory visiting and inspecting is welcome;
8. OEM service offered;
9. Models available:
Slim Fixed LED Display parameters:
| Items | P2.5mm | P3mm | P4mm | P5mm | P6mm |
| Pixel | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B |
| Configuration | SMD 3-in-1 | SMD 3-in-1 | SMD 3-in-1 | SMD 3-in-1 | SMD 3-in-1 |
| Pixel Pitch | 2.5mm | 3mm | 4mm | 5mm | 6mm |
| Pixel Density | 160,000 | 111,111 | 62,500 | 40,000 | 27,777 |
| Module Size(mm) | 160x160 | 192x192or 192x96 | 256x128 | 160x160or 320x160 | 192x192 or 384x192 |
| Pixels/Module | 64x64 | 64x64or 64x32 | 64x32 | 32x32or 64x32 | 32x32or 64x32 |
| Cabinet Size(mm) | Customized | ||||
| Pixels/Cabinet | 384x384 | 320x320 | 256x256 | 192x192 | 160x160 |
| Cabinet Weight | Customized | ||||
| Brightness | 1300cd/m2 | 1300cd/m2 | 1300cd/m2 | 1300cd/m2 | 1300cd/m2 |
| Viewing Distance | >2.5m | >3m | >4m | >5m | >6m |
| Power Consumption | Max: 800 | Max: 800 | Max: 650 | Max: 400 | Max: 400 |
| (W/m2) | Ave: 240 | Ave: 240 | Ave: 195 | Ave: 120 | Ave: 120 |
| Driver Mode | 1/32 scan | 1/16 scan | 1/16 scan | 1/16 scan | 1/16 scan |
| Cabinet Material | Cold Rolled Steel | ||||
| Refresh Rate | 300-3000HZ adjustable | ||||
| LED Life | 100,000 hours | ||||
| Supply Voltage | AC220V/50HZ; AC110V/60HZ | ||||
| Operating Temperature | -20ºC ~ +40ºC | ||||
| Operating Humidity | 10% - 90% | ||||
| Viewing Angle | H: 120°; V: 120° | ||||
| Gray Scale | Red, Green and Blue each 16K | ||||
| Display Color | 4096 Billion | ||||
| IP Rating | IP20 | ||||
| Display Capability | Text, Graph and Video | ||||
| Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World. | |||||
Project Case:
Our Service:
Pre-sales support:
1. We offered technical advice to you before buying our products.
2. Help you to choose suitable products within budget with most economy benefit.
3. Design the framework structure to install our led products with technical drawing.
4. We offered software customization for our your specific usage.
After- sales service:
1. We promise you more than just two years warranty service!
2.We provide free maintenance services including remote configuration, technical consultation, and trouble shooting for you.
3. We promise a life time follow-up service for all the equipment supply by our company. These include continuously improve of system functions and upgrade of system software.
4. We offered training to our customer who includes operating and maintenance of our products.
Products details:
Why Choose Us:
1. attractive price! If you have any urgent questions, pls contact me without hesitation;
2. Free training is provided for our customers;
3. 24/7 after-sale service
4. Good heat dissipation capability and high waterproof because of the unique design of vent fan (like shutter).
5. Viewing angle, wavelength, and other optical properties; aging test LED lamps attenuation; an IC testing stand, strict control the quality of the IC ;
Customer Visiting:
Trade Terms:
2 years warranty ,lifelong maintaining. In the Maintenance period, free of all maintenance charges. After Maintenance period,only charge the material costs fees;
Transportation: By sea or air or Express;
Hardware: LED display and video controlling system;
Payment: T,T / West Union;
Workshop:
Applications:
| Business Organizations | super market, shopping mall, office building, industrial park, exclusive agency, chain shop, hotel, restaurant, travel agency, pharmacy, etc. |
| Financial Organizations | banks, security company, insurance company, post office, hospital, school, etc. |
| Public Places | subway, airport, train/bus station, gas station, toll station, bookstore, park, exhibition hall, stadium, museum, convention center, ticket center, HR market, lottery center, plaza, commercial building, parking lot, etc. |
| Entertainments | movie theater, fitness hall, country club, night club, massage room, bar, cafe, Internet bar, beauty shop, golf course, casino, etc. |
