Product Description

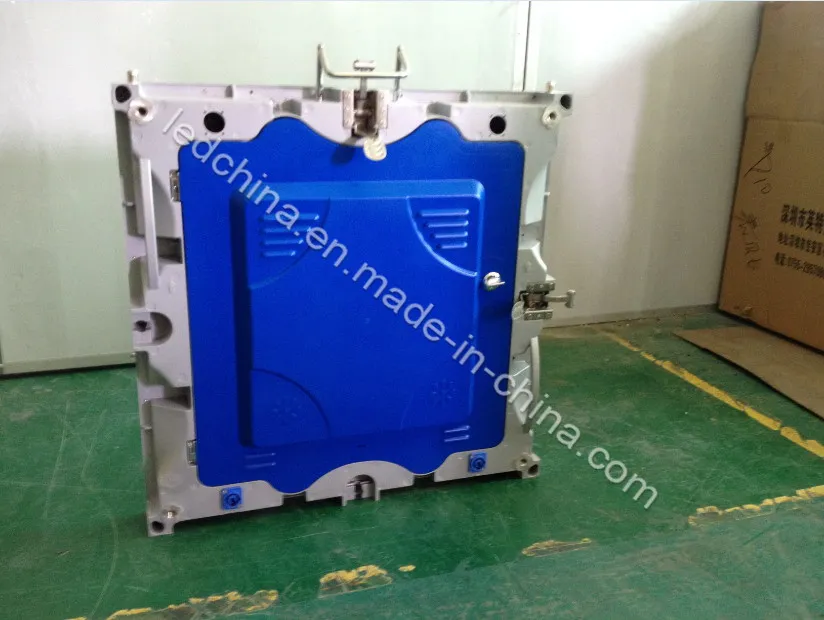

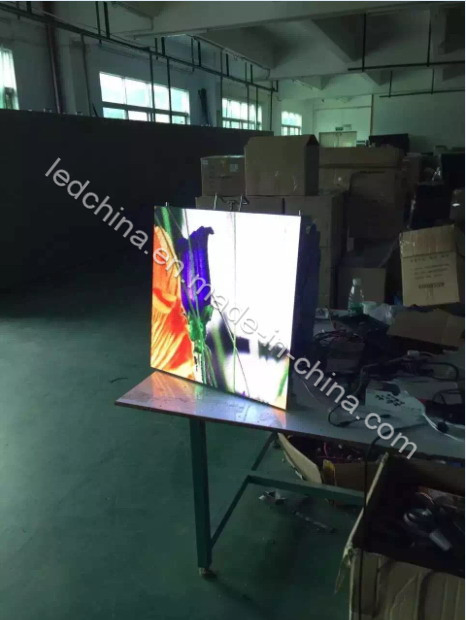

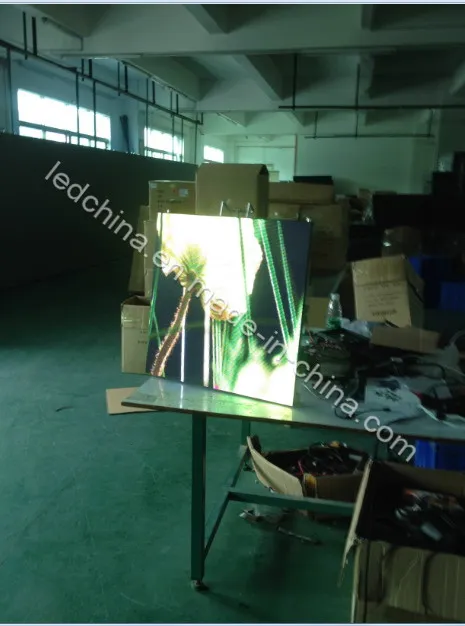

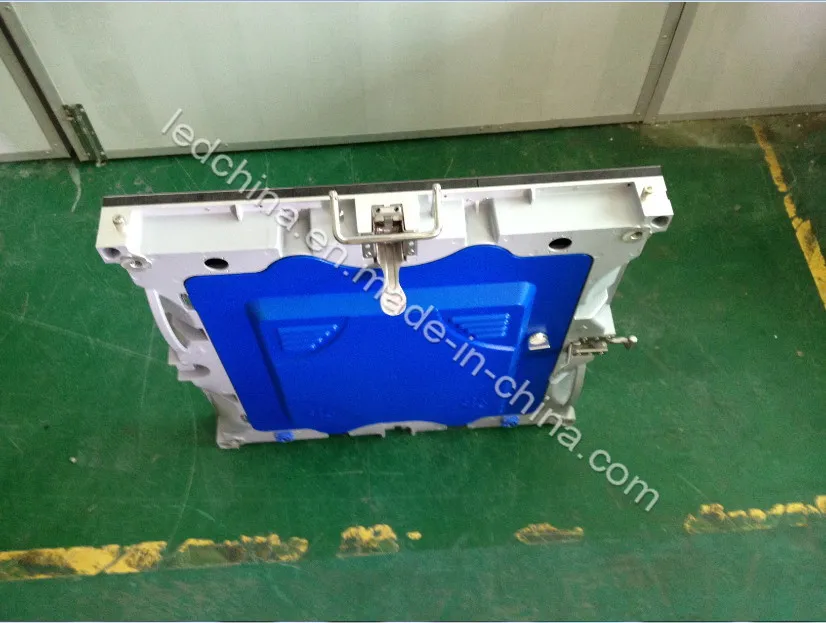

P3 Indoor 576*576mm LED Display Cabinet for rental purpose
Advantages:
1. High resolution high precision;
2. Large view angle;
3. Easy to carry and fast installation;
4. Lightweight cabinet.

Technical Parameters
Item Name	Parameter
Model No	SY-P3-16S
Module size	192mm*192mm
Pixel pitch	3mm
Pixel Density	111111 pixels/m2
Pixel configuration	1R1G1B
LED Package mode	SMD2121
Module resolution	64dots(H)*64dots(V)
Drive type	Constant drive
Scan mode	1/16 scan
Port type	HUB75-A
Brightness of white balance	≥1700cd/m2
Cabinet Dimension	576mm*576mm
Module Quantity	9pcs
Cabinet Resolution	192*192
Cabinet Material/Type	Die Casting Aluminum for rental purpose
Best viewing distance	3M~15M
Best viewing angle	120°(H) 60°(V)
Average Power consumption	500W/m2
Max.Power consumption	≤1150W/m2
Current	≤20mA(single LED)
Frame Frequency	≥60Hz
Refresh frequency	≥600HZ
Power Supply Mode	AC220±10% 50Hz/AC110±10% 60Hz
Temperature	storage:-35ºC~+85ºC working:-20ºC~+50ºC
Humidity	10%-95%
Grey scale/colors	256levels of each color(RGB)/16.7M colors
Screen Lifespan	≥100,000 hours
Screen Plainness	<±1mm
Blind Spot Rate	<0.0001
CPU	Pentium4 or above
Operation system	WIN98/2000/NT/XP
Control method	Synchronization
