Commom Cathode P5 P6 P8 P10 Energy Saving Low Comsuption Light Diecasting Aluminum IP65 7000CD Advertising Fixed Video Wall Sign Billboard Pantalla LED Display
Company profile&Workshop scene Product Description1. Grade: Grade-A2. Size: 960mm*960mm*85mm3. Control system: Nova, Colorlight, Linsn, TX etc for choices4. Certification: 3C, ISO9001 and CE for screenProduct NameEnergy saving common cathode 960*960mm die casting cabinet-P5/P6.66/P8/P10 outdoor ......
Send Inquiry
Product Description

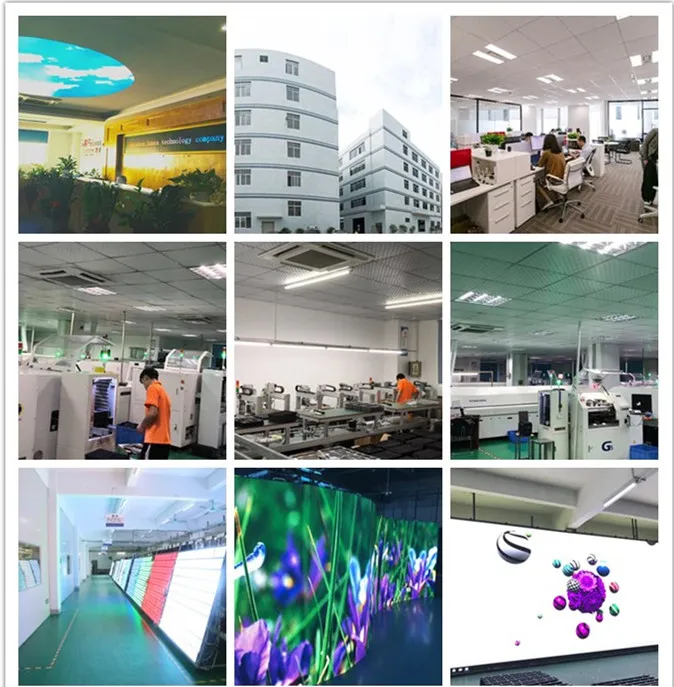

Company profile&Workshop scene
Product Description
1. Grade: Grade-A
2. Size: 960mm*960mm*85mm
3. Control system: Nova, Colorlight, Linsn, TX etc for choices
4. Certification: 3C, ISO9001 and CE for screen
2. Size: 960mm*960mm*85mm
3. Control system: Nova, Colorlight, Linsn, TX etc for choices
4. Certification: 3C, ISO9001 and CE for screen

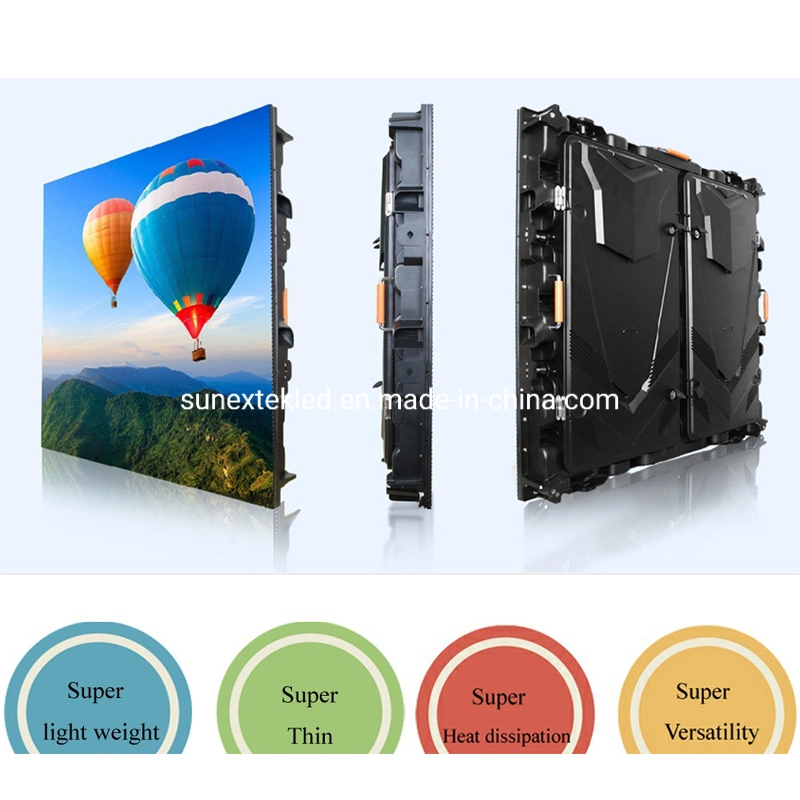

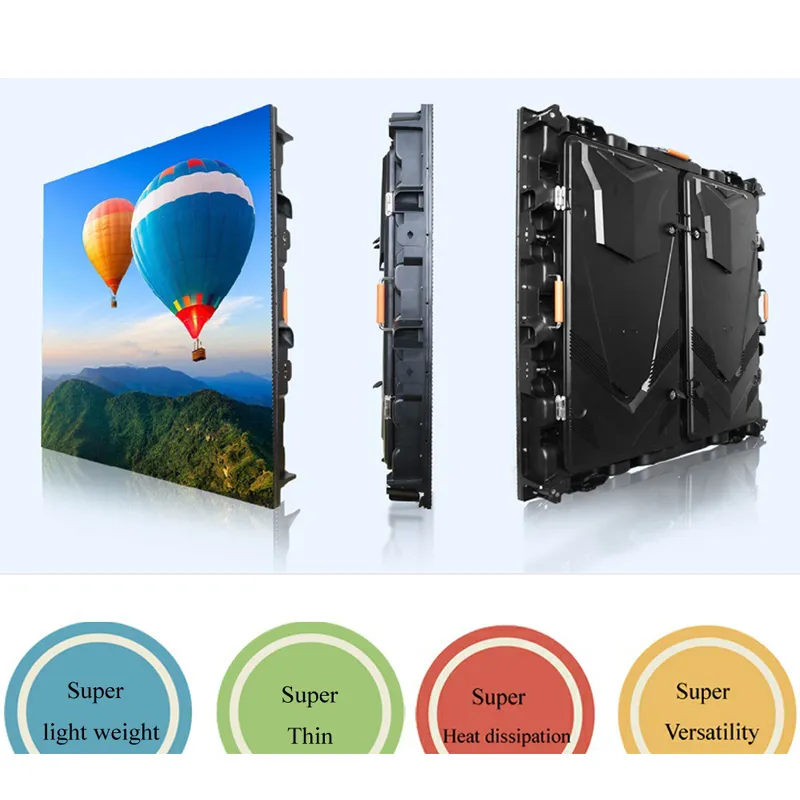

Product Name | Energy saving common cathode 960*960mm die casting cabinet-P5/P6.66/P8/P10 outdoor LED display |
Model | P3,P3.8,P4,P5,P5.93,P8,P10 |

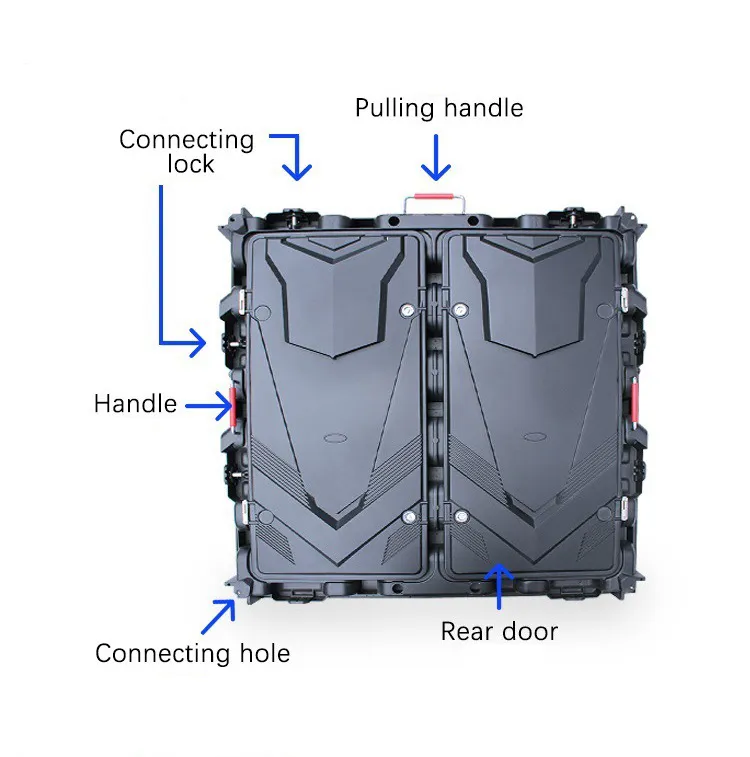

Cabinet material | Die casting aluminium |
Color | Full color |
Cabinet size | 960mmx960mmx85mm |
Module size | 320mmx160mm |
Power connector | IP65 waterproof REUNION static-anti or others as required |
Signal connector | IP65 waterproof REUNION with intellient plug or others as required |
Brightness | >6000cd |
| Item | SunextekLed energy saving common cathode Outdoor led display panel parameters | |||
| Pixel Pitch | 5mm | 6.67mm | 8mm | 10mm |
| Pixel Configuration | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B |
| LED Type | SMD 3-IN-1 | SMD 3-IN-1 | SMD 3-IN-1 | SMD 3-IN-1 |
| Module Size | 320mm x 160mm | |||
| Module Resolution | 64dots*32dots | 48 dots x 24dots | 40 dots x 20dots | 32 dots x 16 dots |
| Cabinet Size | 960mmx 960mm x145mm | |||
| Cabinet Resolution | 192dots*192dots | 144 dots x 144 dots | 120 dots x 120 dots | 96 dots x 96dots |
| Cabinet Weight | 35KG | |||
| Grey Scale | 16 bit | |||
| Refresh Rate | >1200Hz | |||
| Scan Type | 1/8Scan | 1/6 Scan | 1/5 scan | 1/4 scan &1/2Scan |
| Brightness | 5500 | 5500 | 5500 | 4500/5500 |
| Power Consumption(Max./Ave.) | 900/400 W/m2 | 1200/360 W/m2 | 1000/300 W/m2 | 800/240W/m2 |
| AC Input Voltage | 110-240V | |||
| AC Input Frequency | 50/60 Hz | |||
| Viewing Angle(Horizontal/Vertical) | 140H/140V | |||
| Storage Temperature | -40 ~ +60 degree | |||
| Operation Temperature | -40 ~ + 50 degree | |||

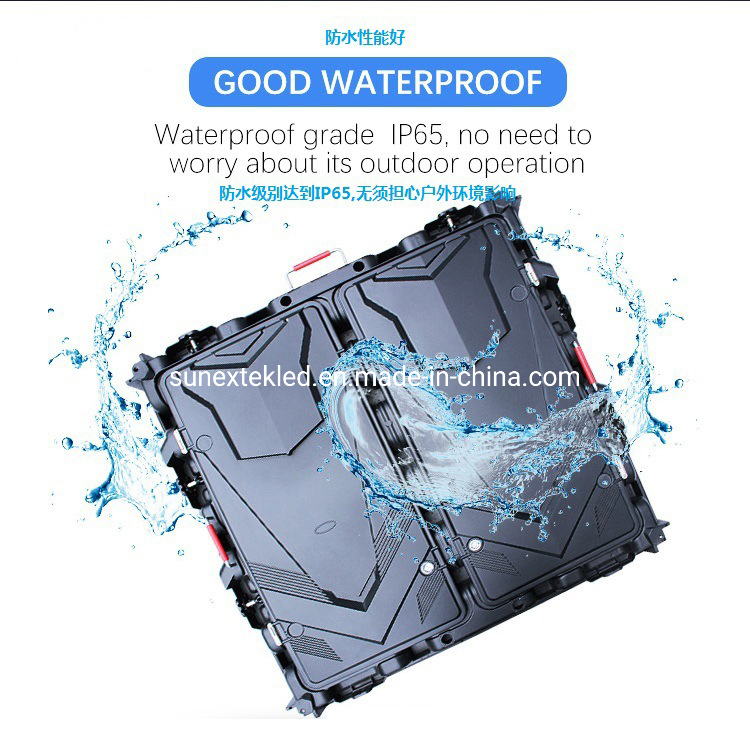

| IP Rating | IP65 | |||
| Lifetime | 100,000 hours | |||
FAQ
1)Reply your inquiry in 24 working hours.
2)Experienced staffs answer all your query in fluent English,Spanish,French,German etc
3)Customized design is available,OEM & ODM are welcomed.
4)Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staffs.
5)Special discount and protection of sales area provided to our distributor.
6)Warmly welcome your visit in our company if available.
7 ) Guidance service: We can guide on line if customers have questions about the installation and usage.
For large project, we provide your engineer a week free training, or if customer could bear the relevant cost, our engineer can go
to customer's country for on-site guidance.
8) Warranty period: 2-3 years after shipment.
