Product Description

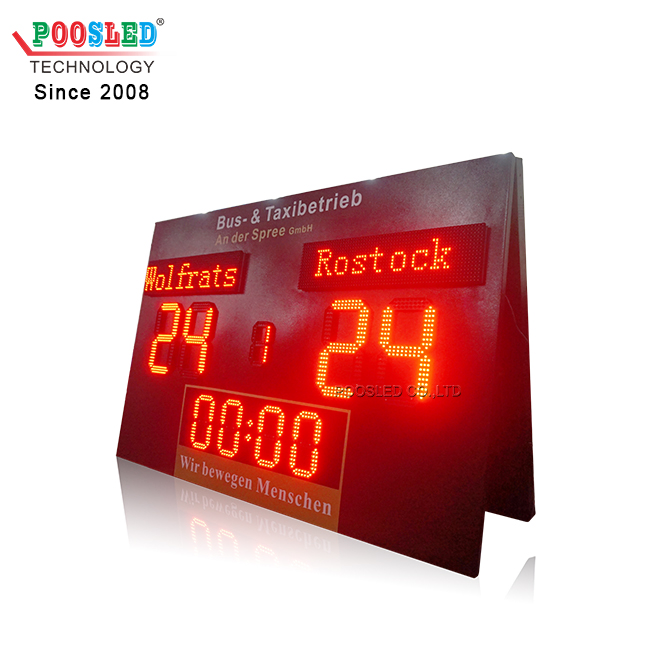

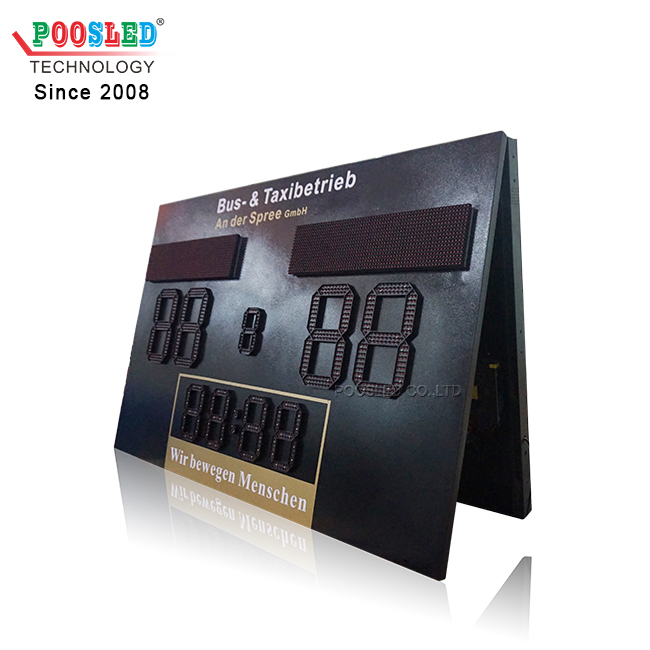

Outdoor Football Led Scoreboard led sport scoreboard for soccer 7segment led digit football scoreboard

Outdoor Football LED Scoreboard LED Sport Scoreboard for Soccer 7segment LED Digit Football Scoreboard

LED Chips parameter
Color	Brightness	Wave Length	Current	Operating Voltage	Viewing angel	LED Chips size	Color temperature	Luminous flux
RED	4000mcd	620-630	60MA	1.9-2.4V	60°/120° /180°	10*20Mil	620-630K	2LM
GREEN	10000mcd	515-525		3.0-3.4V			515-525K	3LM
BLUE	8000mcd	515-525		2.5-3.0V			460-470K	3LM
YELLOW	3500mcd	585-590		1.9-2.2V			588-595K	1.5LM
WHITE	12000mcd	0		3.0-3.4V			6000-7000K	5LM

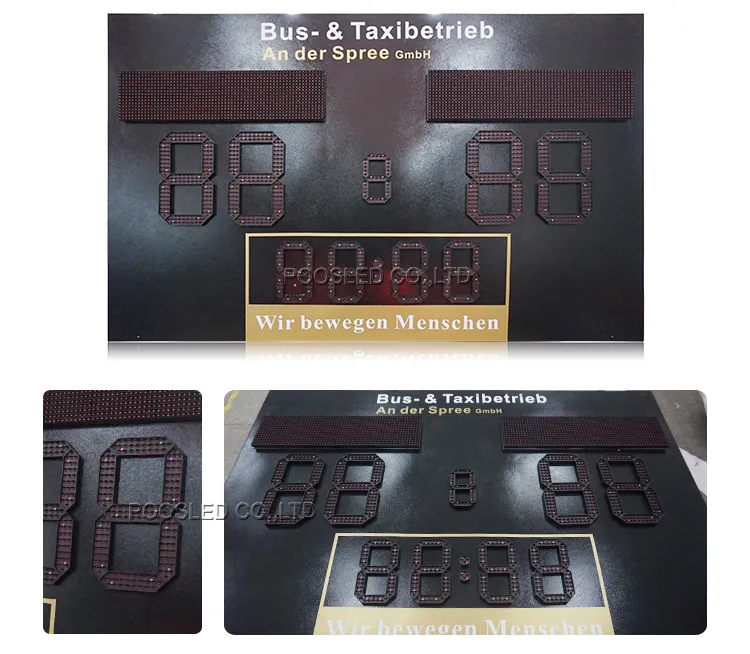

Outdoor Football LED Scoreboard LED Sport Scoreboard for Soccer 7segment LED Digit Football Scoreboard

Question 1:Led digits sign can not work well, some led modules can not be lighting.
Answer :
A.Please check the connecting cables of drive card whether it is loose or not,and connect them again.
B.LED module is broken, please replace the new module to the led sign.
C.Please set the correct quantity of the numbers.For example: 88.88, 8.889/10 is 4 numbers.(Single sided or double sided are the same.)
D.Please check drive card's 2pin ports,and connect to other 2pin ports or change led number.

Question 2:All the led digits are not lighting.Some led signs are controlled together, but only the sign which has control (main) card can work, the other signs can not work.

Answer :

A. Please use the multi-meter to check power supply whether it is on or off.

B. And please connect the power supply's cables again.

C. Please check power supply whether it is 12V.

Question 3:Some led signs are controlled together, but only the sign which has control (main) card can work normally, the other signs can not work well.

Answer :

A. Please check the cables of control card and connect them again.

B. Please use the RF remote controller to set the numbers again.

C. Please check the connecting cable of control card and drive card.

D. Please check IN and OUT port. Please connect them again.

E. Please check control card's signal light is on.

Summary: If all steps you have tried and done, but led sign still can not work well.please repair and change the parts.

1.Change led numbers.

2.Change drive card

3.Change power supply

4.Change control card and remote controller.

Remark: Please return all the parts to supplier after you change.We still want to help solve all the problems and check our products to provide better service to you for long time. If you have some more other questions when you are using the led gas price sign, please feel free to contact us. We will support you anytime.Thanks in advanced!
