Product Description

PRODUCT FEATURES:

High Transparency, High Brightness, Outdoor Curtain LED Display

Ultra Lightweight and Slim

High Brightness for Outdoor Fixed Installation High Transparency

1. Lower Power Consumption

Only 50% power consumption comparing to conventional displays
Special LED selected and high efficiency power supply selected

2. High Brightness

Upto 7500 nits brightness, very good for outdoor advertising , such as wall-mounted installations etc.

3. High Transparency

Upto 80% transparency rate, see through and regardless of wind effect on the screen. The best solution for strong wind areas.

PRODUCT TECHNICAL DATAS:

Item	Unit	Parameter
Type of product		CP15-31
Pixel pitch	mm	Horizontal 15.625mm Vertical 31.25mm
Pixel composition	DIP	346 (1R1G1B)
Resolution	dot/sqm	2048
Unit cabinet size	mm	500(W) X 1000(H)
Unit cabinet pixels	dot	1024
Unit cabinet resolution	dot	32(W) X 32(H)
Unit cabinet weight	Kg/pcs	10
Unit cabinet thickness	mm	67
Max consumption	W/sqm	450
Average consumption	W/sqm	135
Screen brightness	cd/sqm	≥7500cd
Gray lever	bit	16
Color temperature	K	6500-9300k
Brightness adjustment	degree	0-255
View angle	°	Horizontal ≥110° vertical ≥60°
The optimal view distance	m	30-500
Frame rates	Hz	60
Control mode		Synchronization with PC
Drive mode		Static constant current
Power source voltage	AC V	110-220 ± 10%
Life span		100000 hours
Cooling mode		structure-enhanced,natural convection
Strip width	mm	9.8
Strip material		aluminum 6061
Transparent rate	%	80%
IP rate		F/R: IP67
Operating / Storage Temperature	°C	-40~ + 65°C / -55 ~ + 100°C
Installation Frame material		2.0mm cold-rolled galvanized steel sheet
Installation type		quick installation Tool-free
Maintain speed		10S/unit
Maintain mode		Front side or Back side

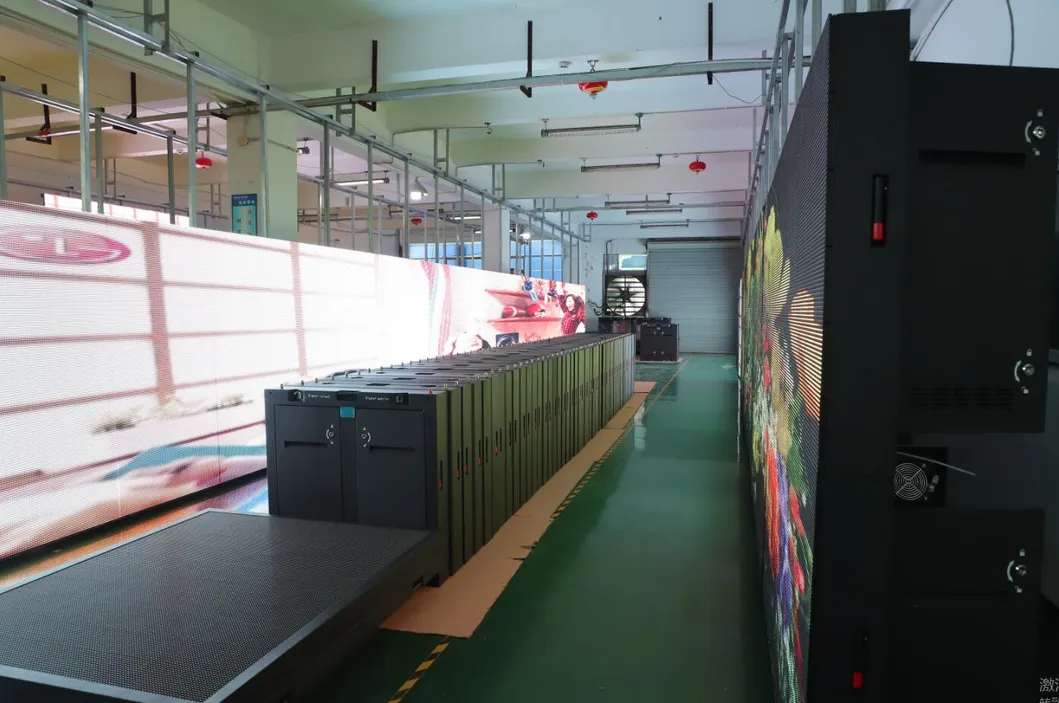

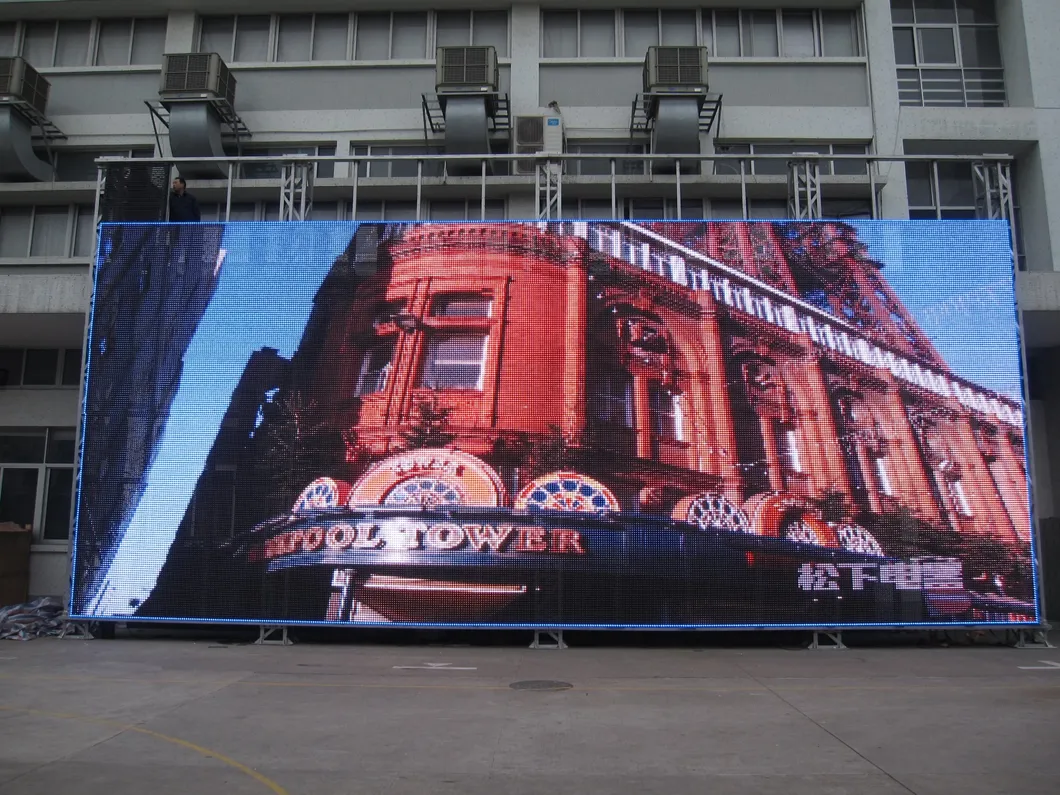

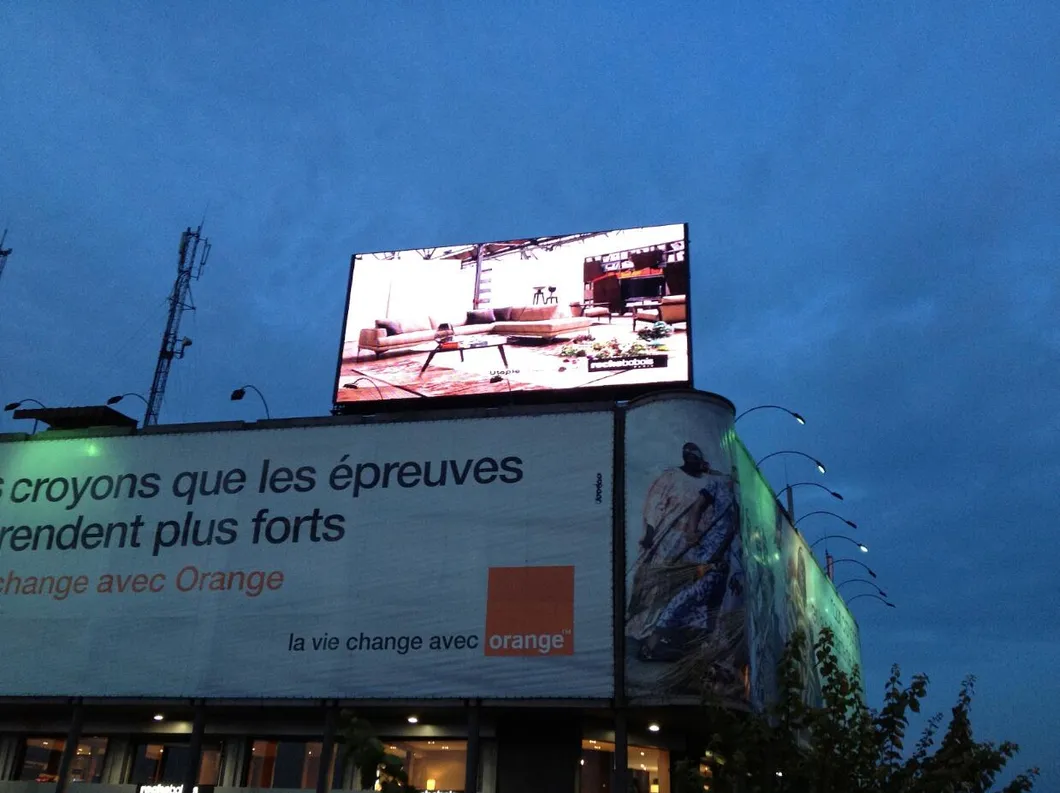

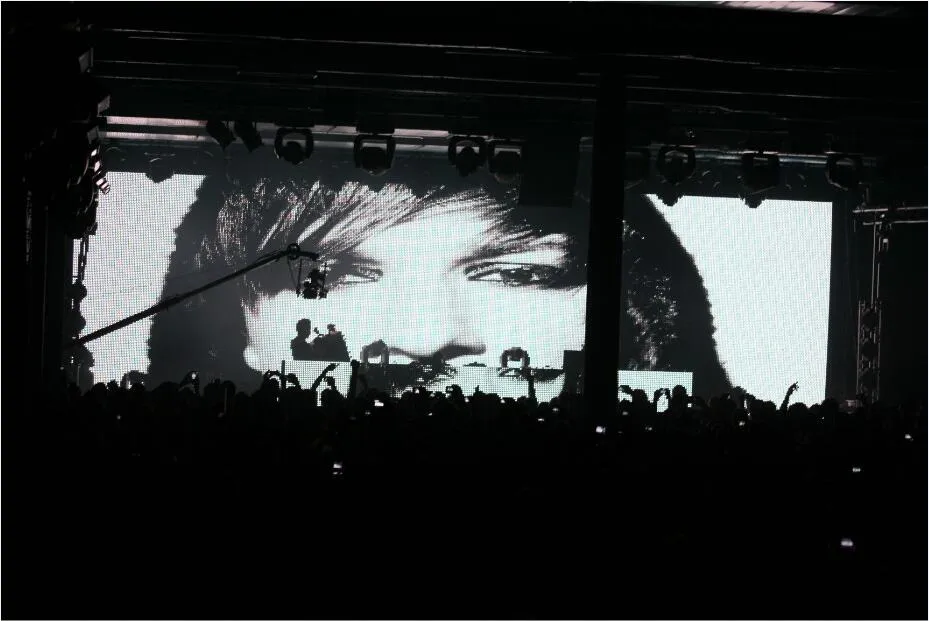

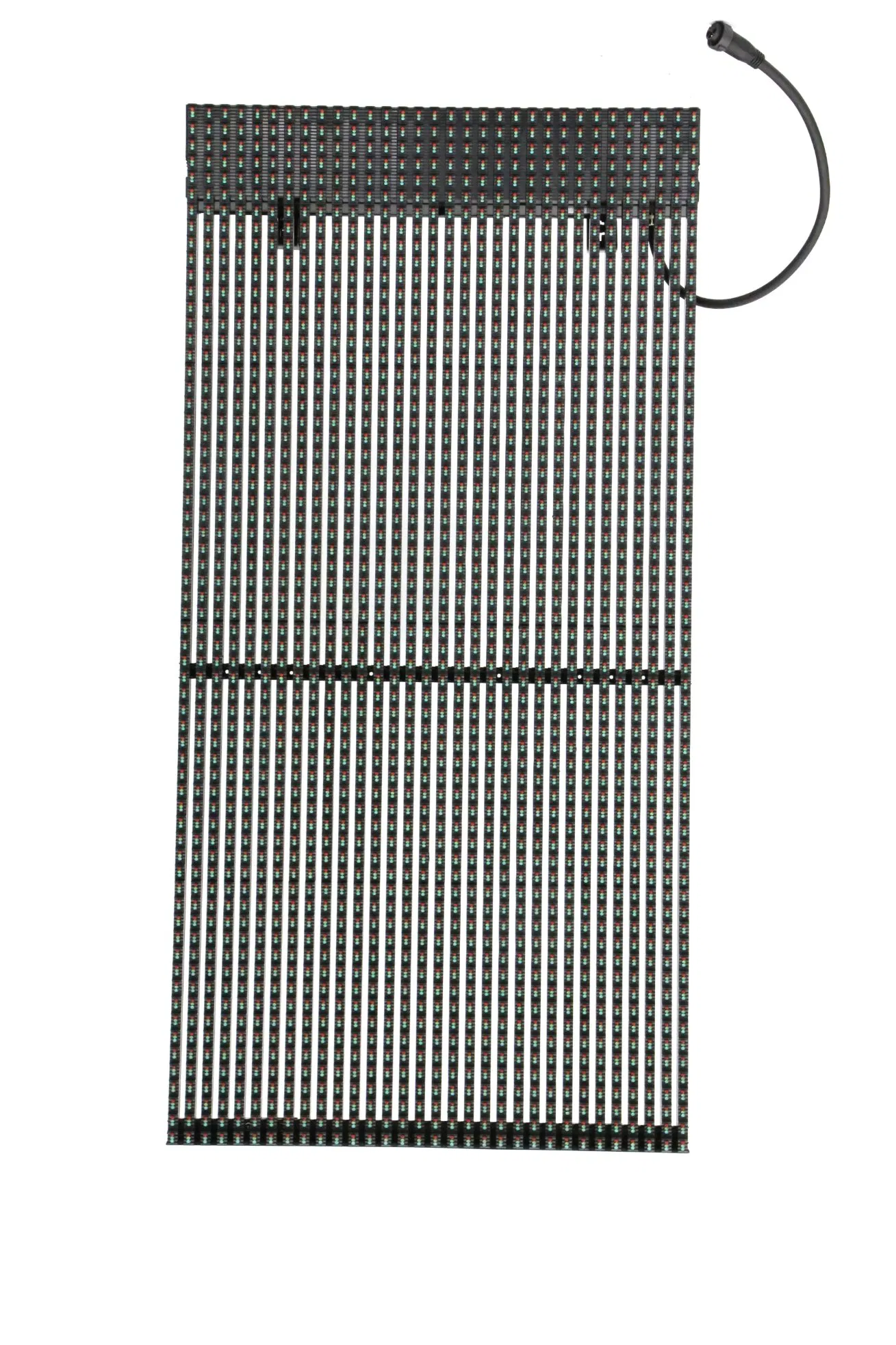

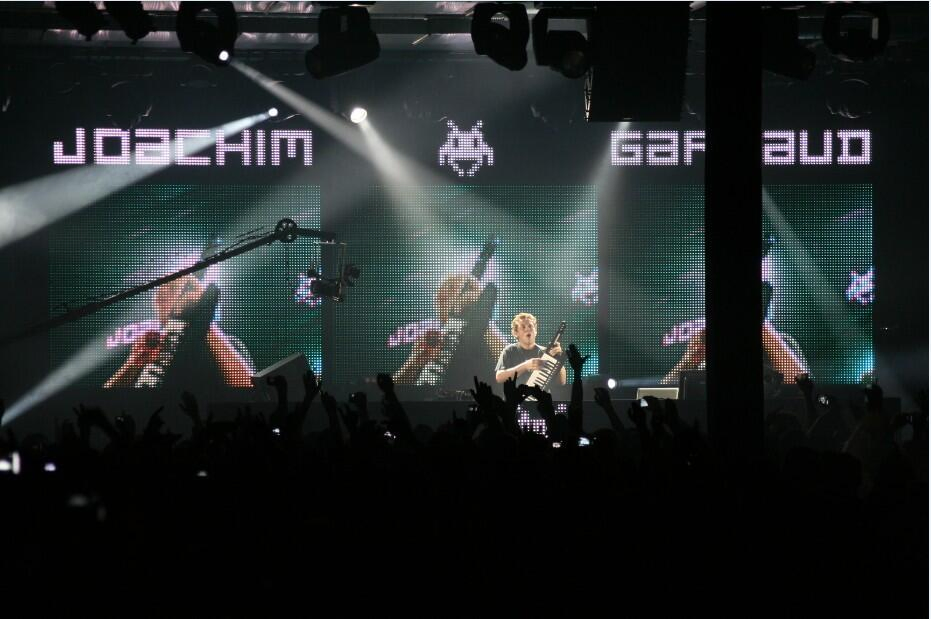

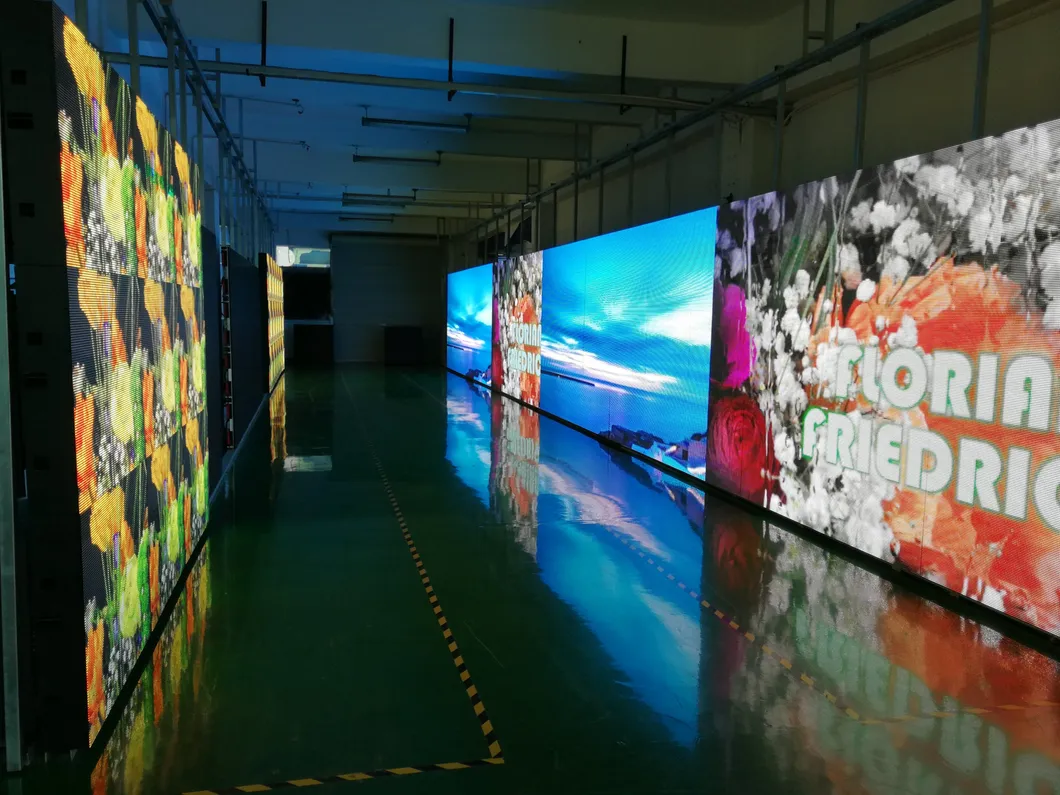

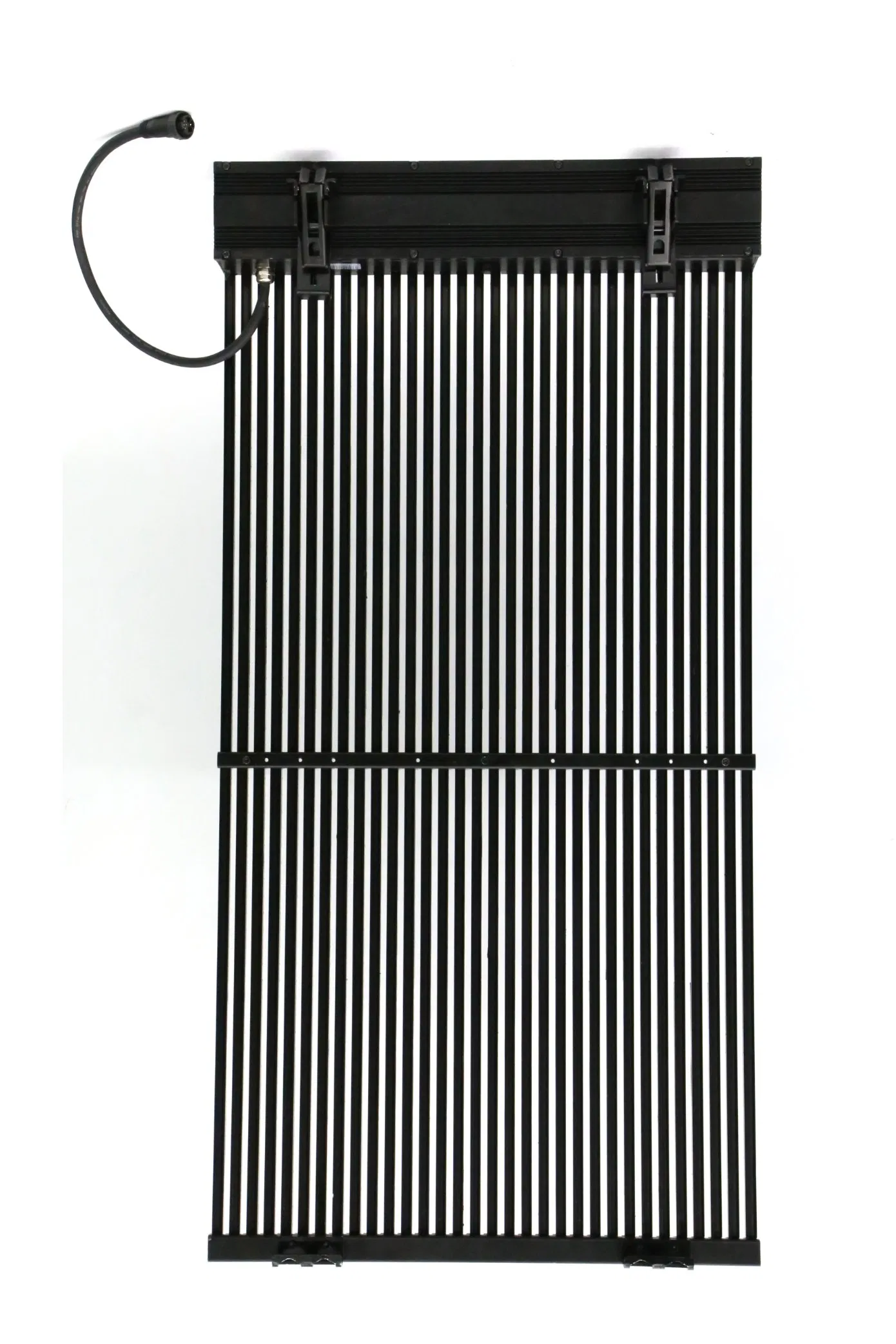

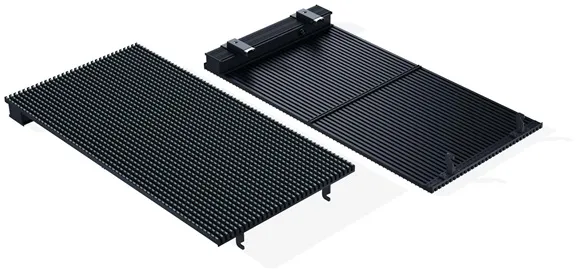

DETAILED PRODUCT PHOTOS:

P15.625- 31.25mm Outdoor LED Media Facade Advertising Display

Our service

1. Your inquiry related to our products or price will be replied within 24hrs;

2. OEM&ODM, any customized ideas we are able to help you to design and turn into product;

3. Distributor-ship are offered for your unique design and some our current models;

4. Protection of your sales area, ideas of design and all your private information;

5. Top quality+Reasonable price+Responsible After Service;

6. CKGLED can offer you all kind of led displays for outdoor/ indoor fixed installations, outdoor/ indoor rental screens / ultra small pixel pitch led displays / Perimeter led displays for sports, traffic led displays etc.

Trade Terms

1. Package: Anti-shaking wooden package, Air flight case or Carton package;

2. Payment: 30% advance payment by T/T, remaining 70% balance after production completed and before shipment;

3. Shipping freight are quoted under your requests;

4. Shipping port: Shenzhen, China;

5. Warranty time: 2 years.

6. Delivery time: 5-15 working days.
