Product Description

Rental LED Display ORA serial

Applicastion: Shop show window, Outdoor building, Outdoor stage, Outdoor event, Outdoor show
Type Name: ORA4/ ORA 5 / ORA 6. / ORA8 / ORA 10
Pixel pitch: 4mm / 5mm/ 6mm / 8mm / 10mm
Brightness: 5000~6000nits
Cabinet Size: 512 x 768mm , 640x640mm
Feature: outdoor high resolution, HQ, hight brightness

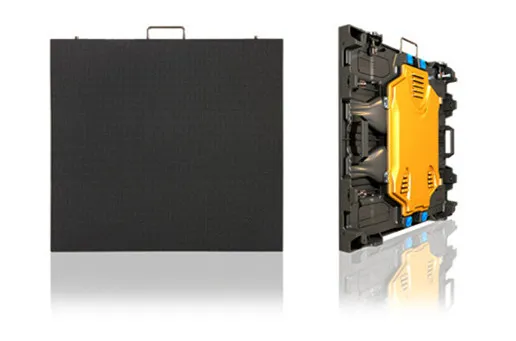

P8 SMD3535 Outdoor Rental LED Display with 640mm X 640mm Die Cast Alumium Cabinet

P8 SMD3535 Outdoor Rental LED Display with 640mm X 640mm Die Cast Alumium Cabinet

Detail specification

Parameters	Outdoor Die-casting LED Display Series ( 640 MM X 640MM )
Pixel Pitch (mm)	6.6mm	8mm	10mm	10mm
Pixel density(pix/m2)	22545	15625	10000	10000
LED Type	3535	3535	3535	Dip346
Viewing Angle	X,Y140°	X,Y140°	X,Y140°
Brightness(nits)	≥5000	≥5000	≥5000
Drive Method	1/6	1/5	1/4
Color Depth	65536
Refresh Rate(Hz)	1920	1920	1920
Module Size (mm)	320×160×16
Cabinet Size(mm)	640×640×80
Cabinet Material	aluminum
Cabinet weight(kg)	12	17	17
Voltage	200-240V
Average.power(W/m2)	230	230	230
Max.power (W/m2)	700	700	700
IP Grade	IP65/IP54
Operating temperature/humidity	temperature:-20ºC~ 50ºC humidity:10~90%RH
Storage temperature/ humidity	temperature:-40ºC~ 60ºC humidity:10~90%RH
Lifetime(h)	≥50000
Compliant Standard	CCC(CE)Rosh

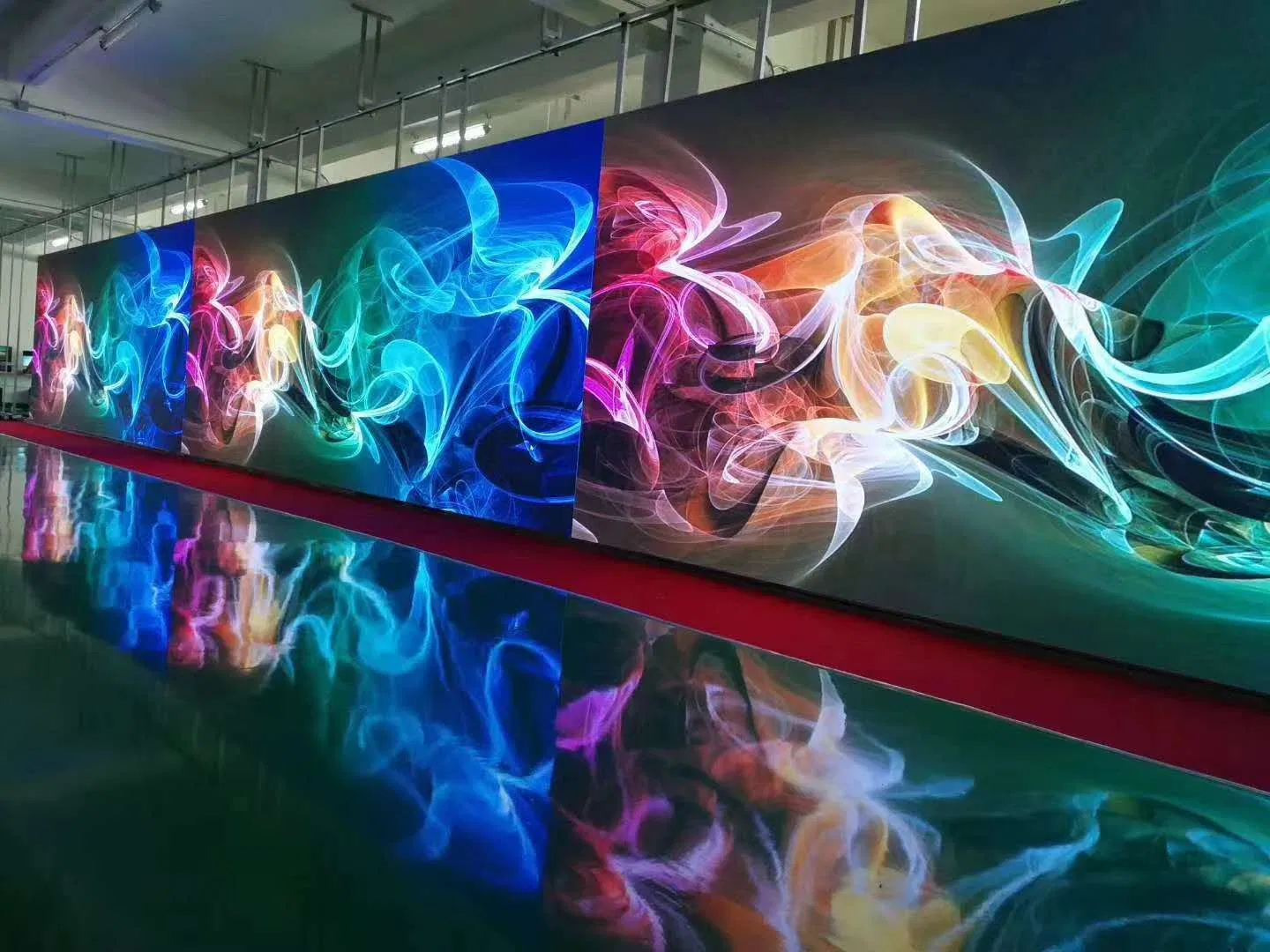

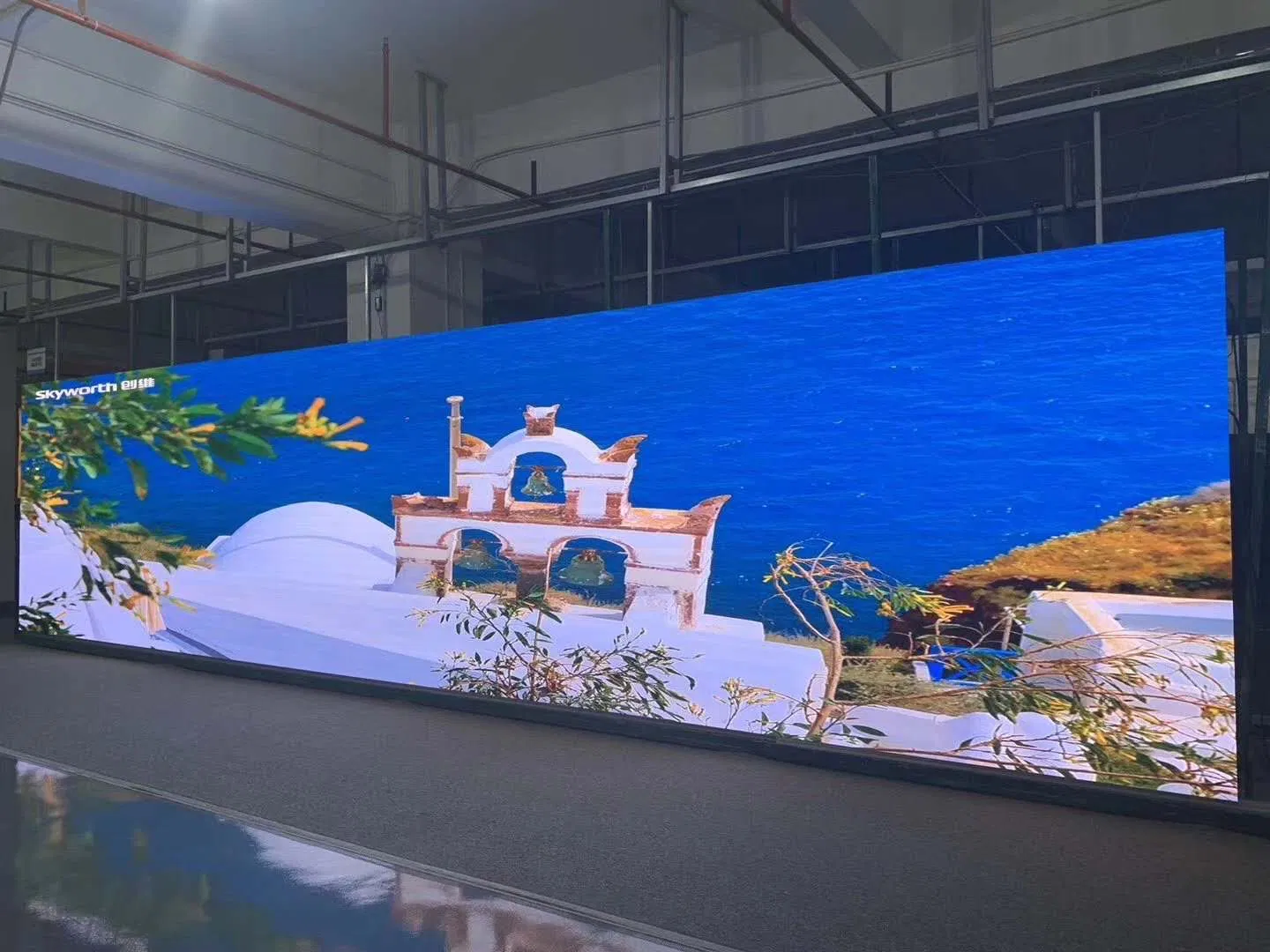

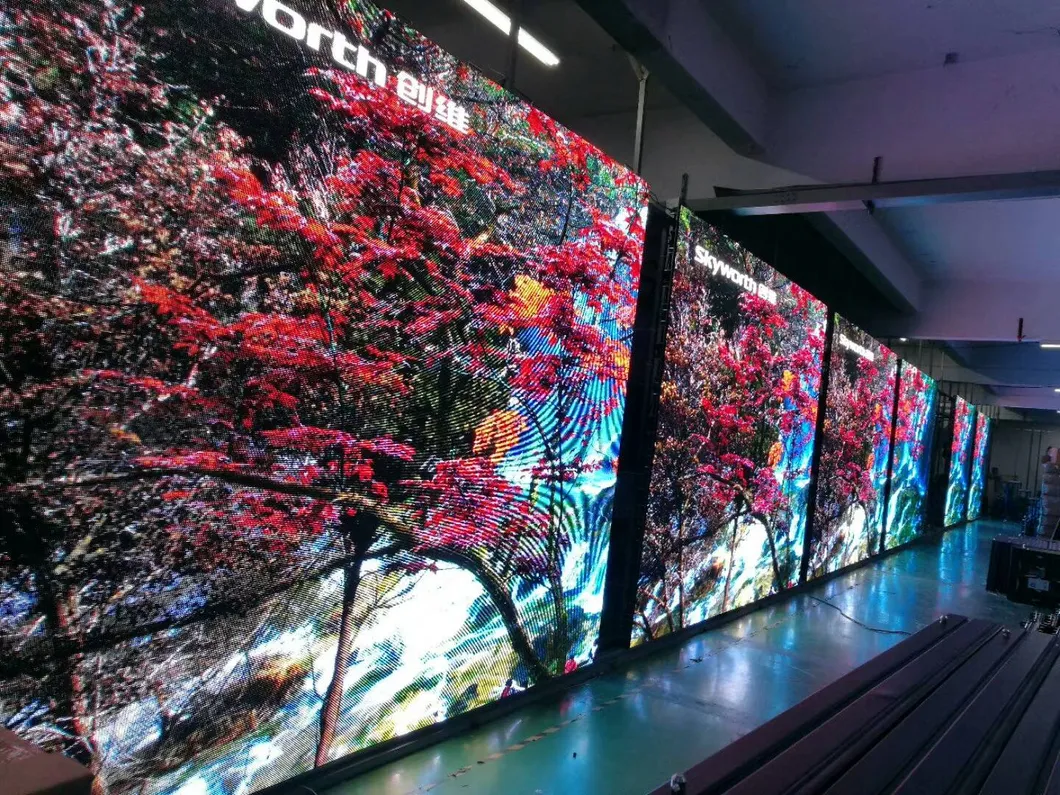

Outdoor rental led display aging in the factory
P8 SMD3535 Outdoor Rental LED Display with 640mm X 640mm Die Cast Alumium Cabinet

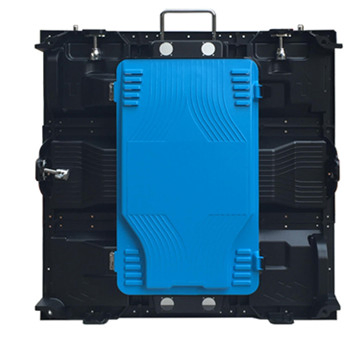

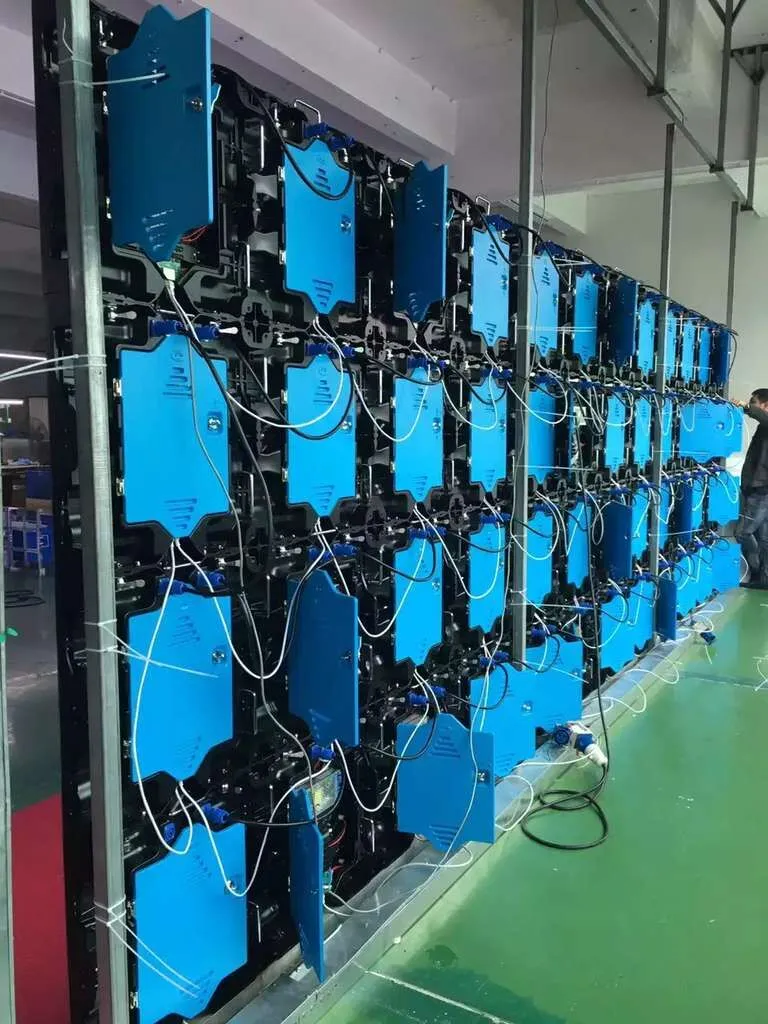

The detail back view for the rental led display aging in the factory
P8 SMD3535 Outdoor Rental LED Display with 640mm X 640mm Die Cast Alumium Cabinet
